Fiber Wood FiberTherm Protect dry densities 110, 140, 180kg/m³
Fiber Wood panels with densities 110, 140, 180kg/m³.
Fibertherm Protect dry is a fiber wood panel, made with dry process, plasterable for thermal insulation of external and internal walls. The panels have high density, high compressive strength and are water repellent. These panels are ideal to insulating system of walls in wooden structures, but also for renovations and new traditional constructions.
from 12,00 €/m²
Price list Data s. 110 Data s. 140 Data s. 180 Specif. 110 Specif. 140 Specif. 180 Install. 110 Install. 140 Install. 180The Fiber Wood FiberTherm Protect dry 110, 140 and 180 is a plasterable panel for thermal insulation insulation of external and internal walls. These panels are produced with a dry system, have a high compressive strength and are water-repellent. They are ideal for exterior insulation in wooden constructions, but also for renovations and new traditional constructions.
One of the main functions of the building envelope is to reduce the heat exchange between inside and outside: in winter, when heat losses must be avoided, and in summer when internal overheating must be reduced.
The fiber wood panel FiberTherm Protect 110, 140 and 180 is ideal for insulating the building envelope of your building in a completely natural way, guaranteeing the creation of rooms with a high living comfort as well as a truly healthy indoor atmosphere.
The fiber wood panels FiberTherm Protect 230, 265 are available with tongue&groove profile, or with sharp edges. There also are the possibility to choose between three different densities: 110 Kg/m³, 140 Kg/m³ and 180 Kg/m³.
The material is also recyclable, it is certified and made exclusively with wood from controlled forests in compliance with the FSC guidelines (Forest Stewardship Declaration).
The insulating fiber wood panels FiberTherm Protect dry have the following characteristics:
• are an integral part of the insulation system BetonWood©srl approved by the inspectorate for construction work;
• water repellent insulating panels, open to the diffusion of steam, for sturdy constructions;
• excellent insulating properties both in summer and in winter;
• quality of the product recognized for years; surface of the male and female panels smoothed on both sides;
• starting from the 40 mm panels, they can be used as insulating containers for insulating material such as FiberTherm zell, Canawool or Floc;
• economic and robust processing
• integrated system with a single contact for the supply of plaster and accessories;
• allow to obtain fire-resistant constructions up to class F90-B;
• recyclable, ecologic, environment-friendly;
• building material tested and authorized according to current European standards.
Available sizes
fiber wood panels dry 110kg/m³
sharp edges
| Thickness | Size mm | kg/m² | Pan./pallet | m²/pallet | kg/pallet |
|---|---|---|---|---|---|
| 100 mm | 1200 x 400 | 11,00 | 22 | 10,6 | approx.127 |
| 120 mm | 1200 x 400 | 13,20 | 18 | 8,6 | approx.122 |
| 140 mm | 1200 x 400 | 15,40 | 16 | 7,7 | approx.126 |
| 160 mm | 1200 x 400 | 17,60 | 14 | 6,7 | approx.124 |
| 180 mm | 1200 x 400 | 19,80 | 12 | 5,8 | approx.120 |
| 200 mm | 1200 x 400 | 22,00 | 12 | 5,8 | approx.133 |
| 220 mm | 1200 x 400 | 24,20 | 10 | 4,8 | approx.121 |
| 240 mm | 1200 x 400 | 26,40 | 10 | 4,8 | approx.131 |
Available sizes
fiber wood panels dry 140kg/m³
tongue&groove edges
| Thickness | Size mm | kg/m² | Pan./pallet | m²/pallet | kg/pallet |
|---|---|---|---|---|---|
| 60 mm | 1325 x 600 | 8,40 | 38 | 30,2 | approx.281 |
| 80 mm | 1325 x 600 | 11,20 | 28 | 22,3 | approx.270 |
| 100 mm | 1325 x 600 | 14,00 | 22 | 17,5 | approx.261 |
| 120 mm | 1325 x 600 | 16,80 | 18 | 17,2 | approx.260 |
| 140 mm | 1325 x 600 | 19,60 | 16 | 17,8 | approx.269 |
| 160 mm | 1325 x 600 | 22,40 | 14 | 17,8 | approx.269 |
| 180 mm | 1325 x 600 | 25,20 | 12 | 17,2 | approx.260 |
| 200 mm | 1325 x 600 | 28,00 | 12 | 19,1 | approx.278 |
sharp edges
| Thickness | Size mm | kg/m² | Pan./pallet | m²/pallet | kg/pallet |
|---|---|---|---|---|---|
| 60 mm | 2800 x 1250 | 5,60 | 19 | 66,5 | approx.568 |
| 80 mm | 2800 x 1250 | 11,20 | 14 | 49,0 | approx.593 |
| 100 mm | 2800 x 1250 | 11,00 | 11 | 38,5 | approx.426 |
| 120 mm | 2800 x 1250 | 13,20 | 9 | 29,3 | approx.417 |
| 140 mm | 2800 x 1250 | 15,40 | 8 | 26,0 | approx.430 |
| 160 mm | 2800 x 1250 | 17,60 | 7 | 22,8 | approx.430 |
Available sizes
fiber wood panels dry 180kg/m³
tongue&groove edges
| Thickness | Size mm | kg/m² | Pan./pallet | m²/pallet | kg/pallet |
|---|---|---|---|---|---|
| 40 mm | 1325 x 600 | 7,20 | 56 | 44,52 | approx.360 |
| 60 mm | 1325 x 600 | 10,80 | 38 | 30,21 | approx.350 |
sharp edges
| Thickness | Size mm | kg/m² | Pan./pallet | m²/pallet | kg/pallet |
|---|---|---|---|---|---|
| 40 mm | 2800 x 1250 | 5,60 | 28 | 98,0 | approx.568 |
| 60 mm | 2800 x 1250 | 8,40 | 19 | 66,5 | approx.620 |
Technical characteristics
| Characteristics | Values |
|---|---|
| Densities kg/m³ | 110/ 140/ 180 |
| Fire reaction according to EN 13501-1 | E |
| Coefficient of thermal conductivity λD W/(m∗K) | 0,037(110) /0,040(140) /0,043(180) |
| Specific heat J/(kg∗K) | 2.100 |
| Resistance to vapor diffusion μ | 3 |
| Compressive resistance (kPa) | 50 (110)/ 100 (140)/ 200 (180) |
| Tensile resistance (kPa) | 10 (110)/ 20 (140)/ 30 (180) |
| Dimensional stability 48h, 70°C,90% relative humidity |
Lenght Δεl≤3% Width Δεl≤3% Thickness Δεl≤3% |
| Panels identification | WF-EN 13171-T5-DS(70,90)3 -CS(10/Y)50-TR10 WS1,0-MU3(110) WF-EN 13171-T5-DS(70,90)3 -CS(10/Y)100-TR20 WS1,0-MU3(140) WF-EN 13171-T5-DS(70,90)3 -CS(10/Y)200-TR30 WS1,0-MU3(180) |
| Waste code (EAK) | 030105/170201 |
Solutions with Fiber Wood Protect dry

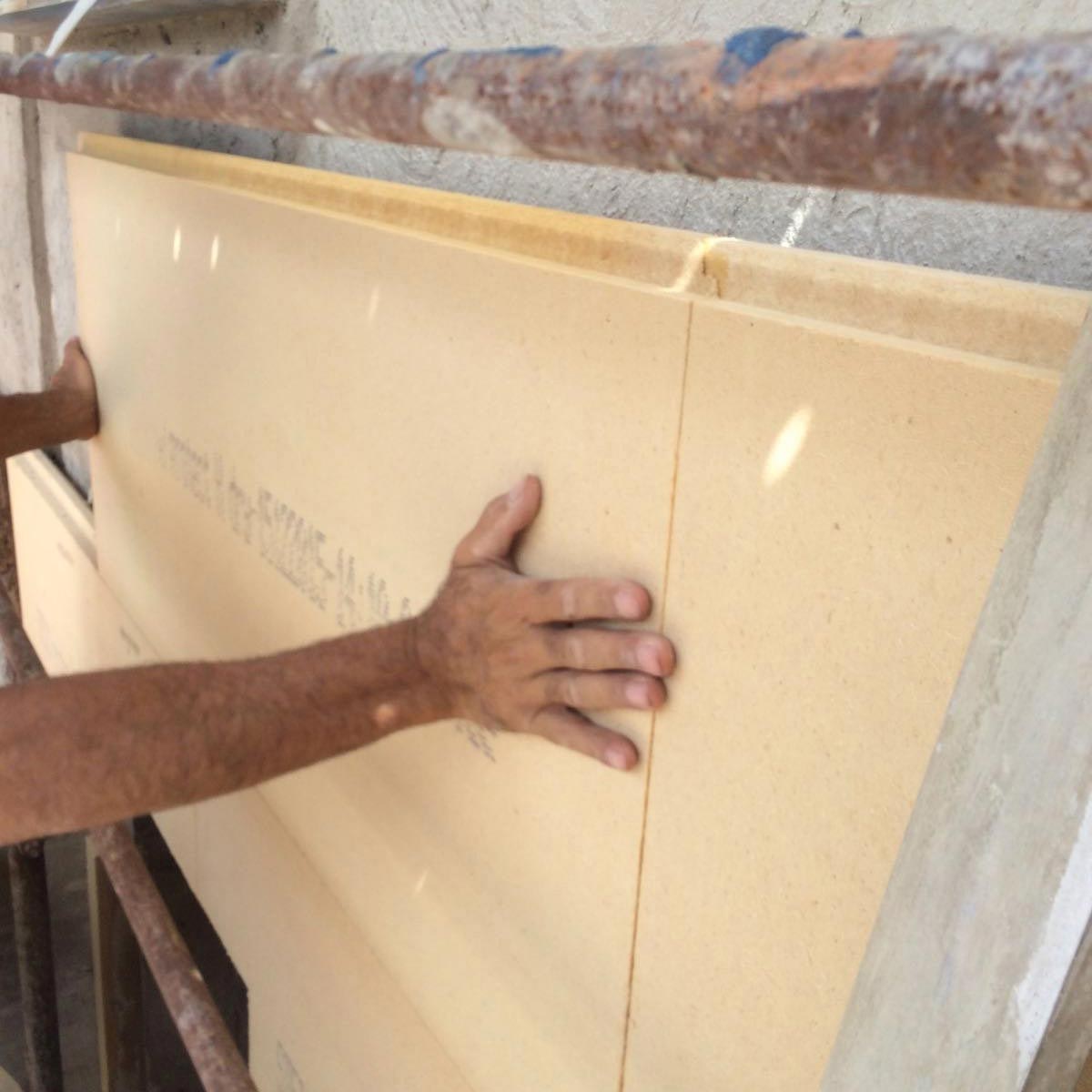

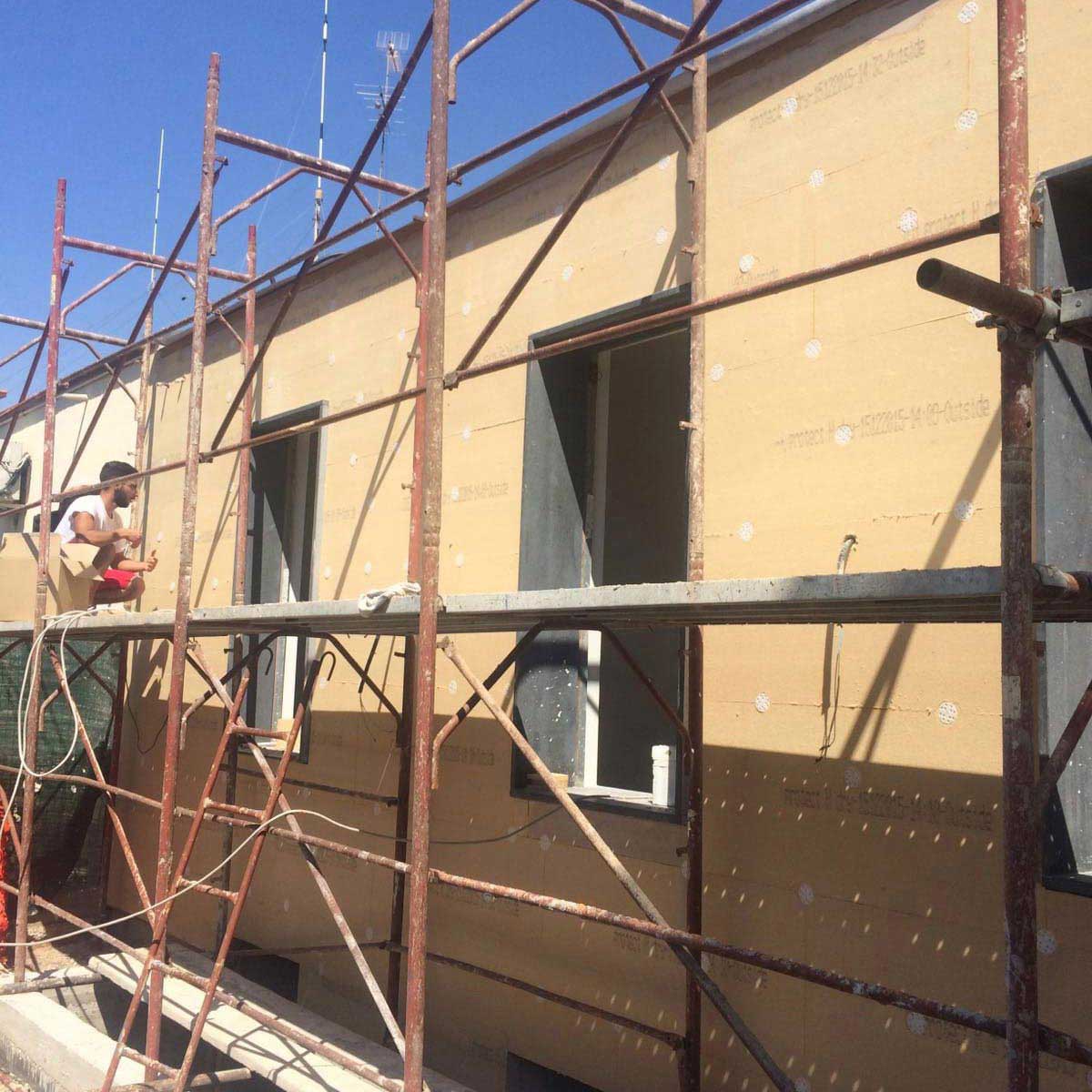

External insulation system with Protect dry fiber wood

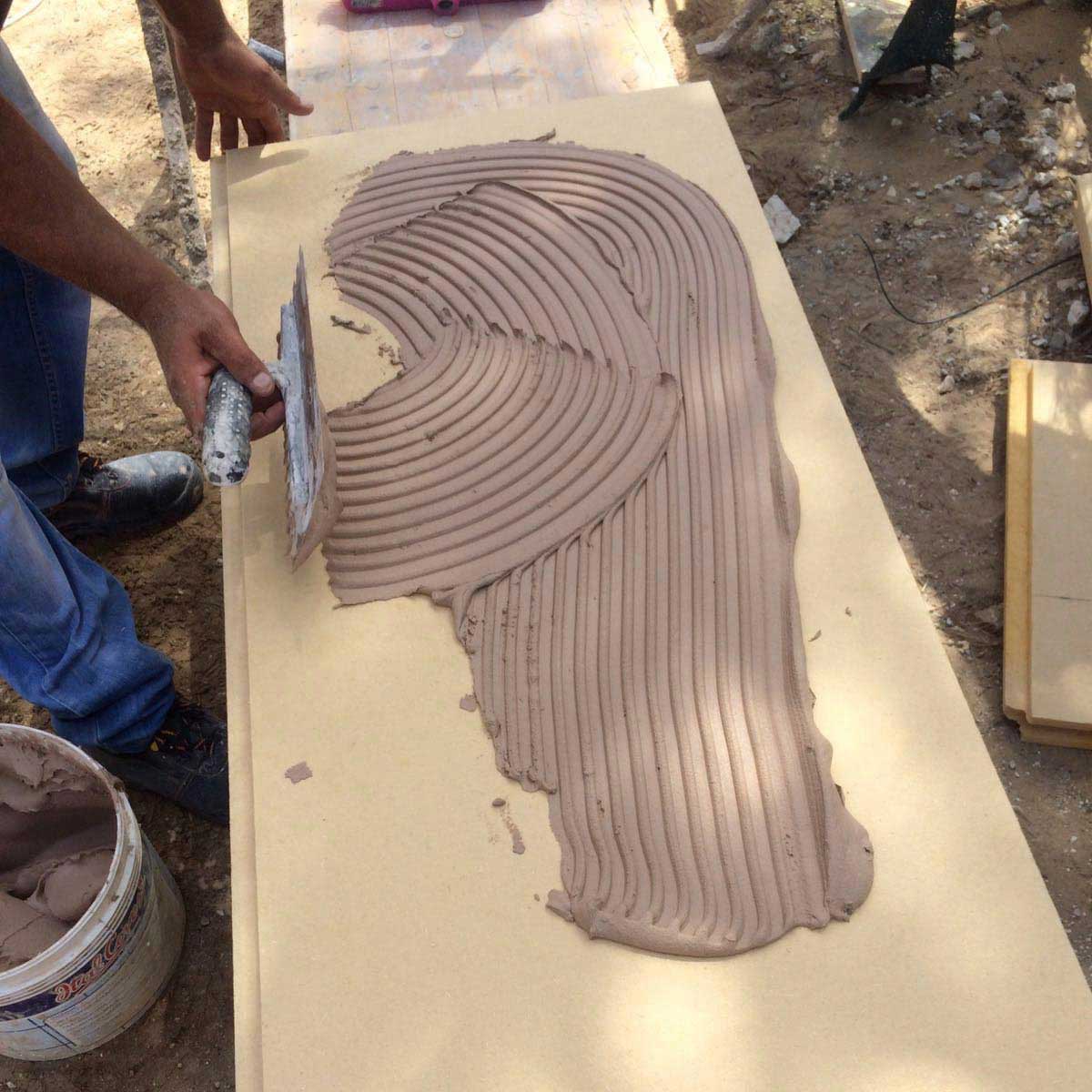

External thermal insulation system in fiber wood FiberTherm Protect dry with dedicated professional accessories.
External insulation system with Protect dry fiber wood on wooden walls
External thermal insulation system with Protect dry fiber wood and BetonWood cement bonded particle boards on wooden walls.

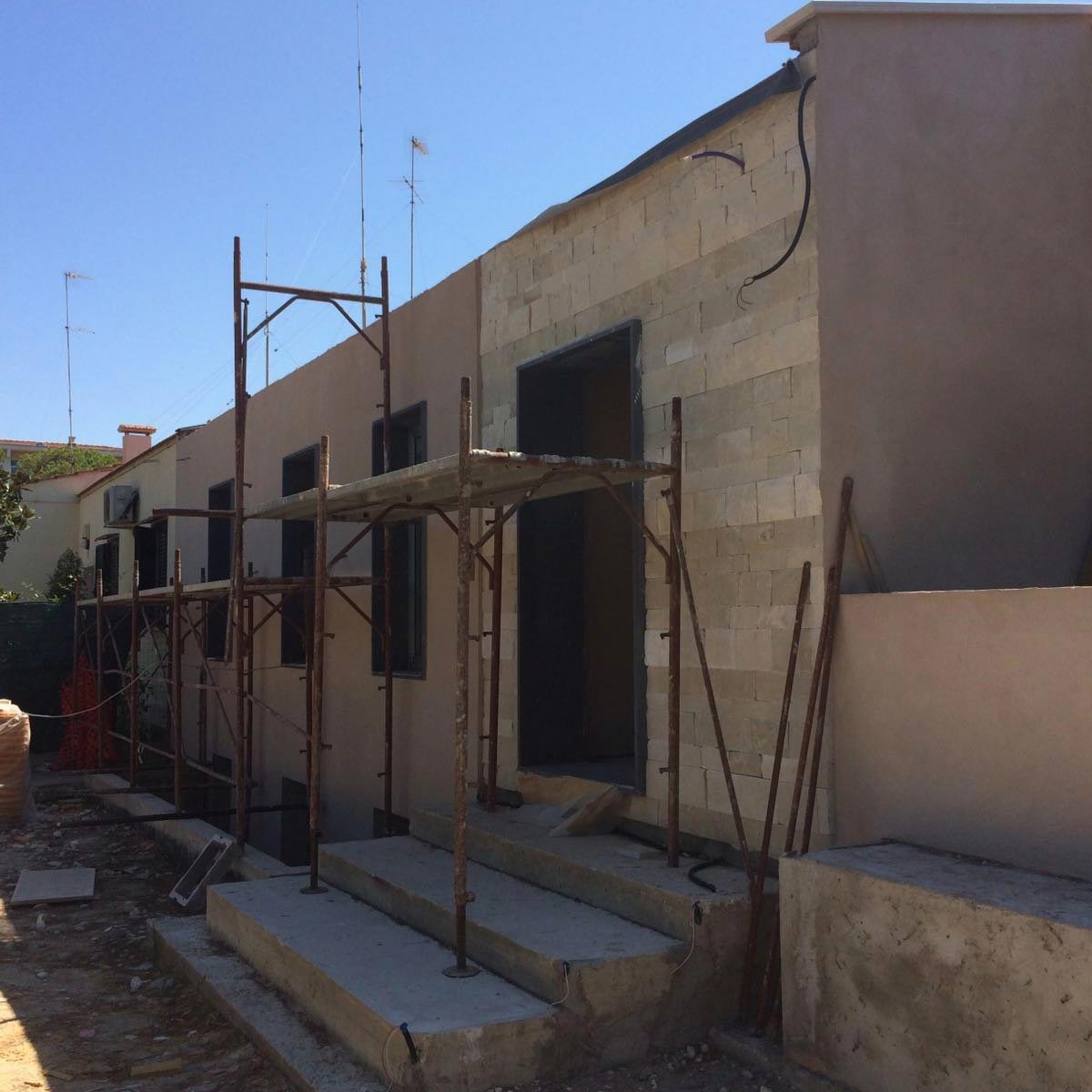

External insulation system with Protect dry fiber wood on masonry
External thermal insulation system with FiberTherm Protect dry fiber wood and BetonWood cement bonded particle boards on masonry.
Internal thermal insulation system in Protect dry Fiber Wood
Internal thermal insulation system in fiber wood FiberTherm Protect dry with dedicated professional accessories.
Internal thermal insulation system Protect dry on wooden wall
Internal thermal insulation system in fiber wood FiberTherm Protect dry or Therm and cement bonded particle board BetonWood with dedicated professional accessories.
Internal thermal insulation system Protect dry on masonry
Internal thermal insulation system in fiber wood FiberTherm Protect dry or Therm and cement bonded particle board BetonWood with dedicated professional accessories.
Internal partition thermal insulation
Internal thermal insulation system in fiber wood FiberTherm Protect dry or Therm and cement bonded particle board BetonWood of internal wall partitions with dedicated professional accessories.
Insulated internal wall
Internal/partition wall made by dry process, with a wood or metal frame, in BetonWood cement bonded particle boards and insulating fiber woods Zell.
