Fiber Wood Insulation FiberTherm

Fiber Wood Insulation FiberTherm density 160kg/m³

Fiber Wood Insulation density 160 Kg/m³.
Fibertherm is a fiber wood panel with high thermal and acoustic insulation values, density, optimal breathability and compression resistance to be used in all parts of the building. Ideal for insulation in wooden buildings, but also in renovations and new traditional buildings.

from 5,60 €/m²

Price list Data sheet Specification

Description
Uses
Characteristics and sizes

The Fiber Wood Insulation FiberTherm 160 is a rigid thermal and acoustic insulation for walls and roofs, ideal for completely natural insulation of your building, ensuring the creation of environments with a high living comfort as well as a truly healthy indoor atmosphere.

FiberTherm 160 is a Fiber Wood Insulation produced with a wet system, the only one to guarantee the complete compatibility of the material with the criteria of green building, because it is free from any type of toxic substance.

The material is also recyclable, it is certified and made exclusively with wood from controlled forests in compliance with the FSC guidelines (Forest Stewardship Declaration).

The insulating fiber wood panel FiberTherm 160 has the following characteristics:

• high compression resistance;
• effective protection against summer heat and winter frost;
• tested dermatologically; without any negative effect on the skin;
• made with wet system;
• remarkable insulating properties;
• open to the diffusion of water vapour;
• high capacity for absorbing ambient humidity, which is a natural hygrometric regulator system;
• creates a truly healthy and completely natural indoor atmosphere;
• recyclable, ecological, respects the environment;
• building material tested and authorized according to current European standards.

The insulating fiber wood panel FiberTherm 160 is suitable for any type of thermal and acoustic insulation under surface covering that requires the use of a rigid material.
In particular this material can be used for the realization of:

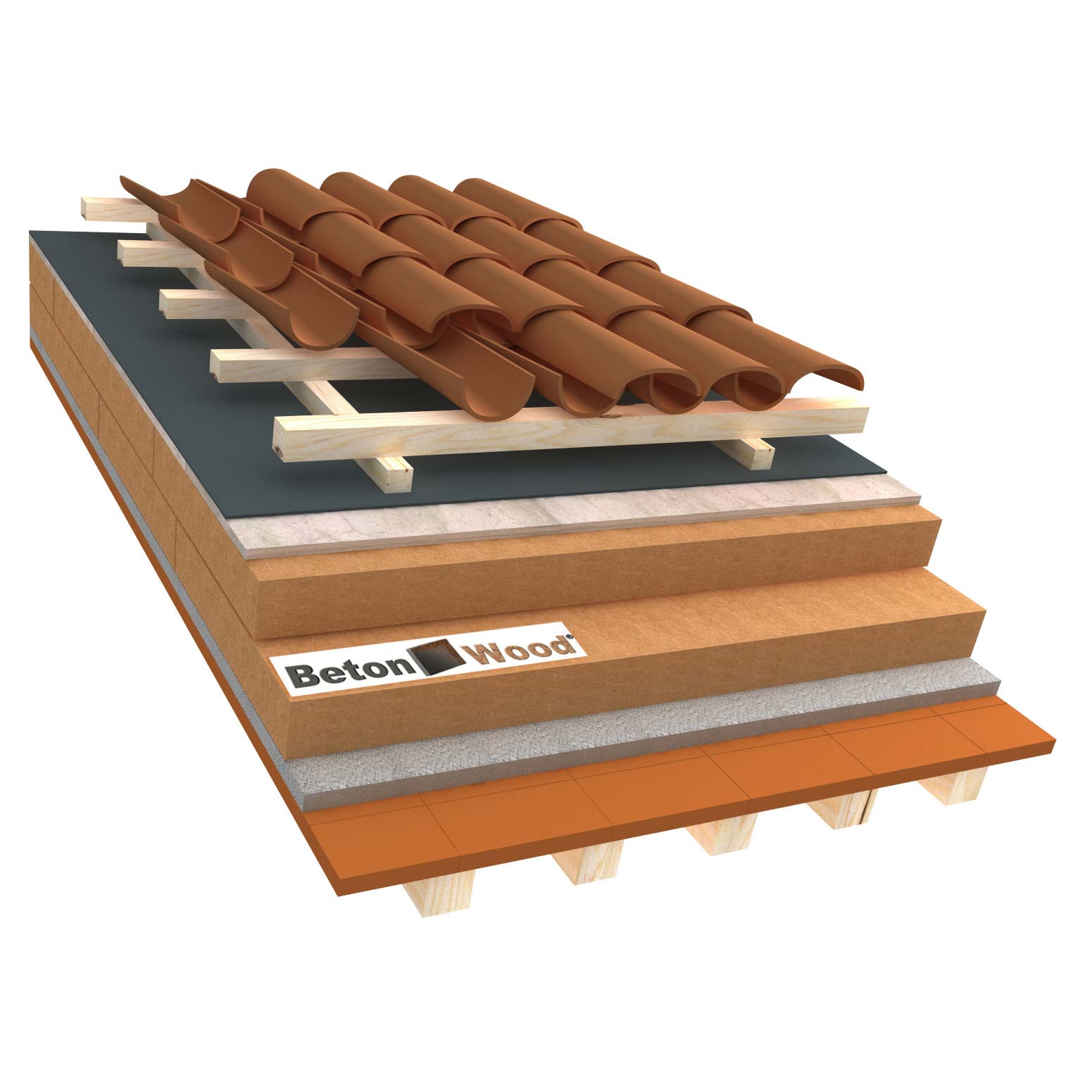

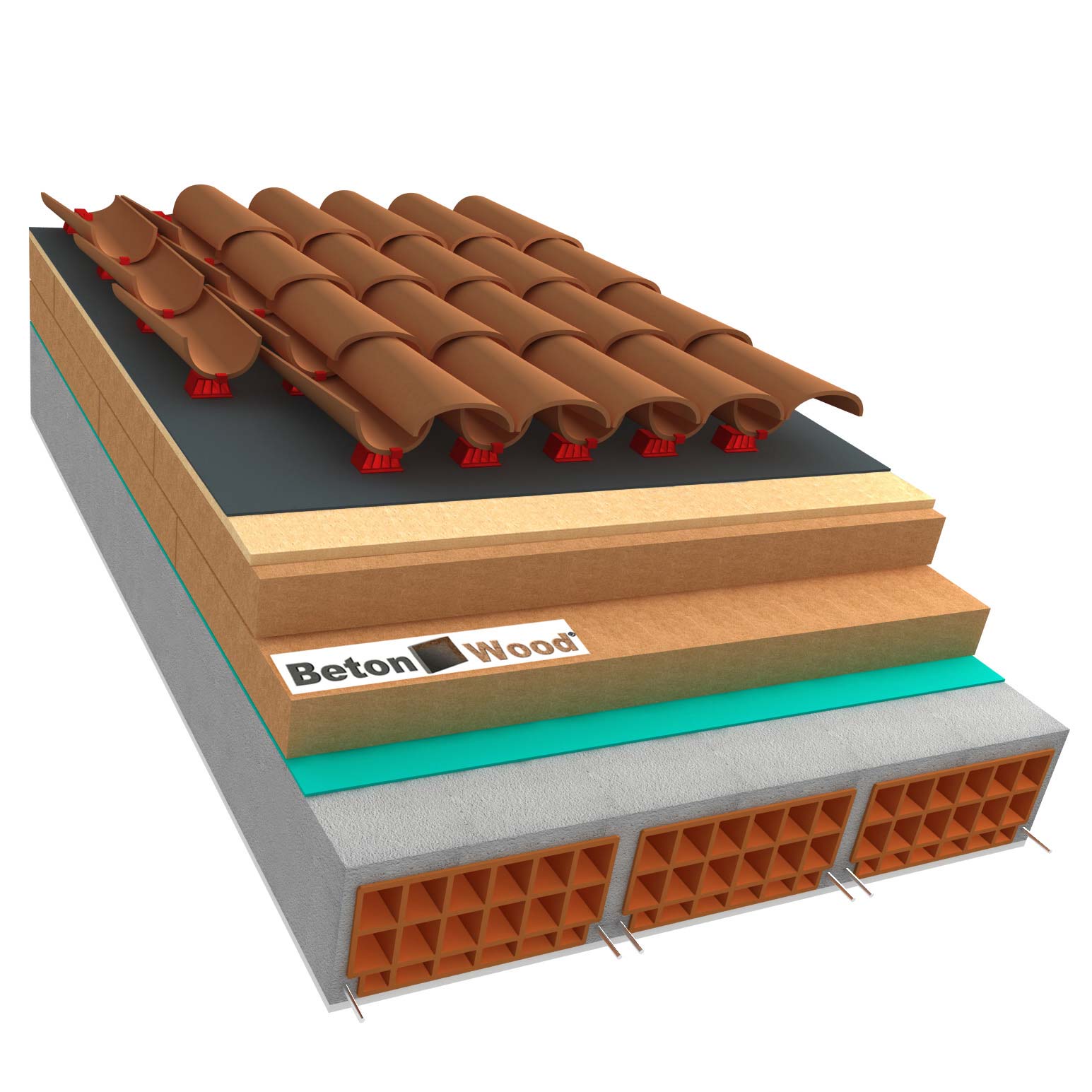

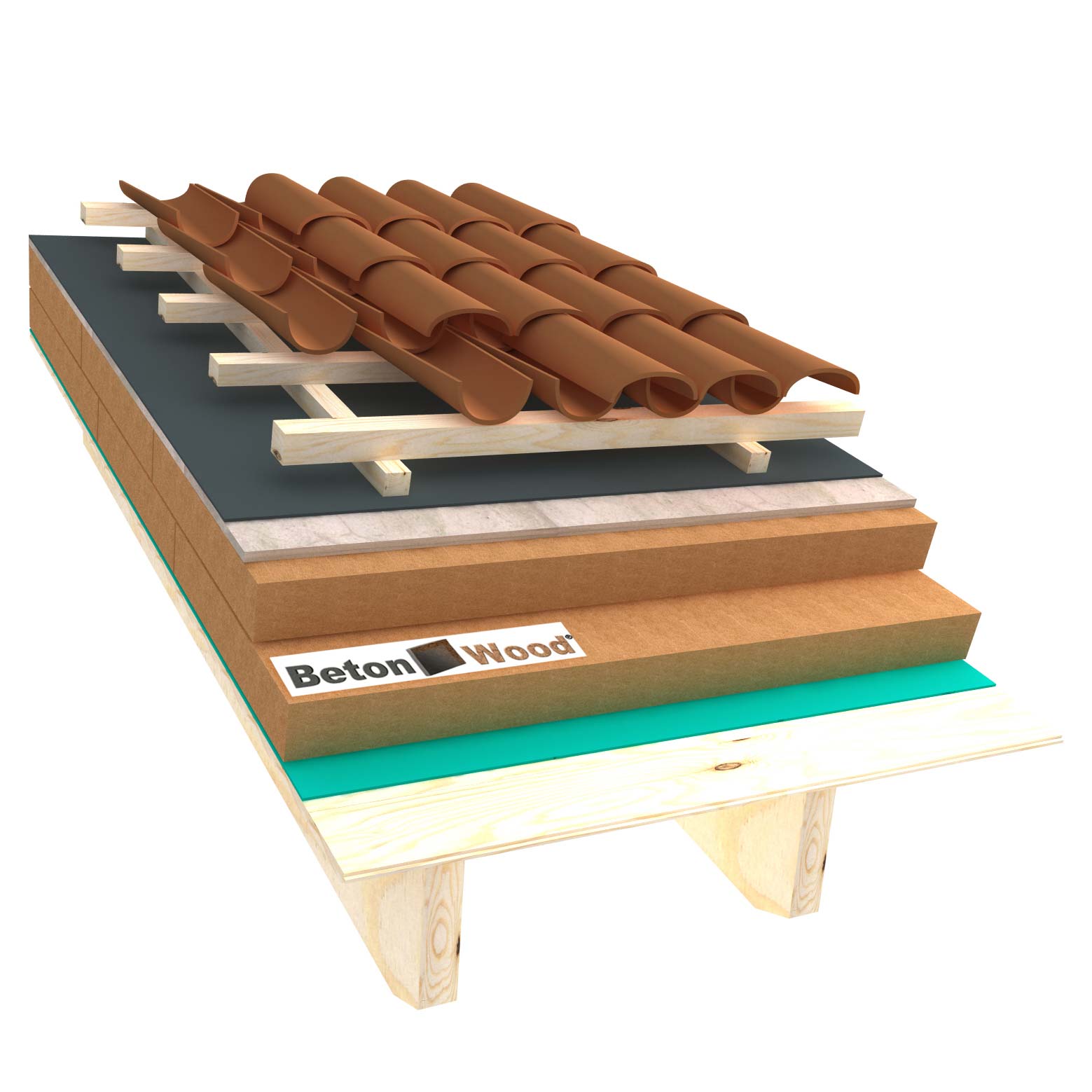

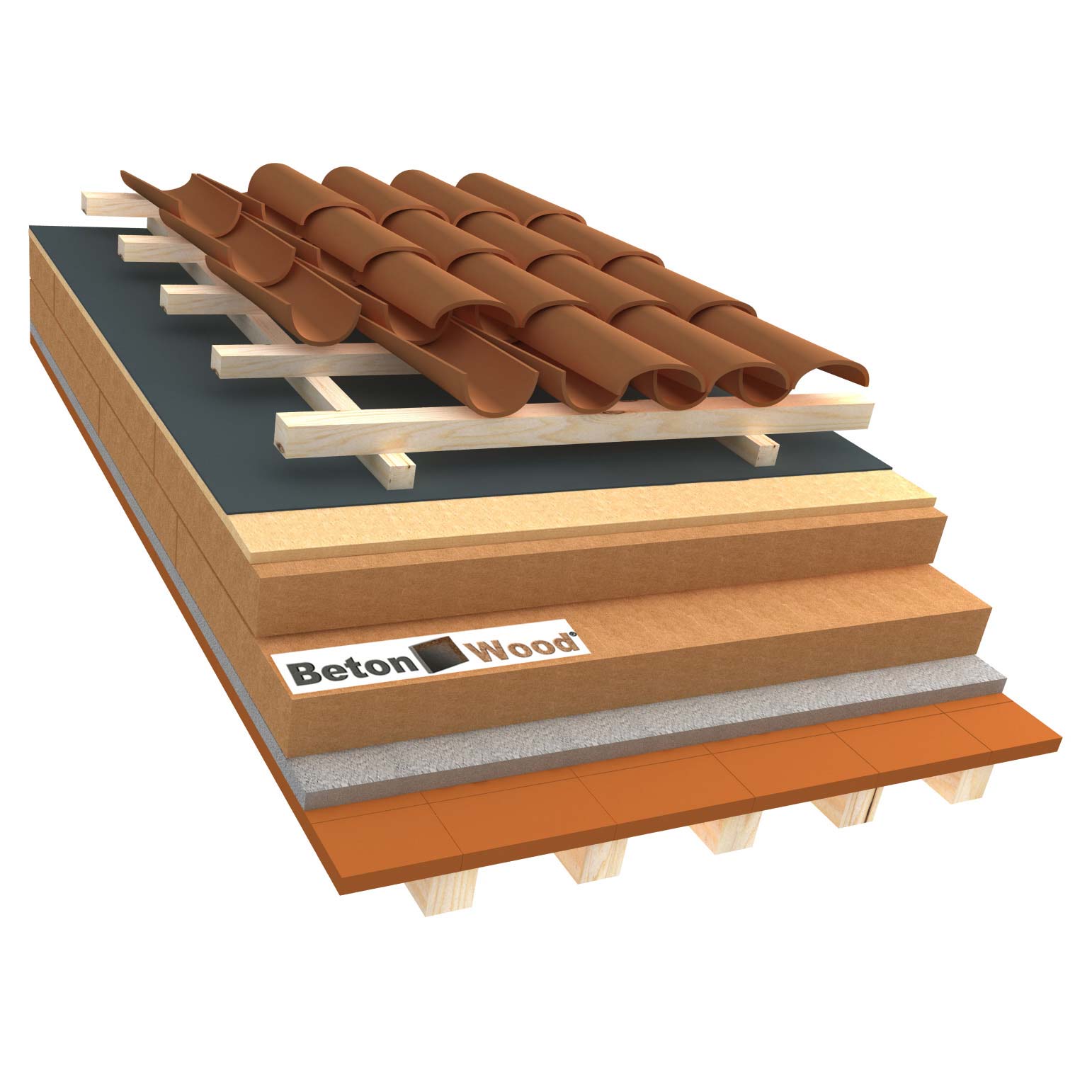

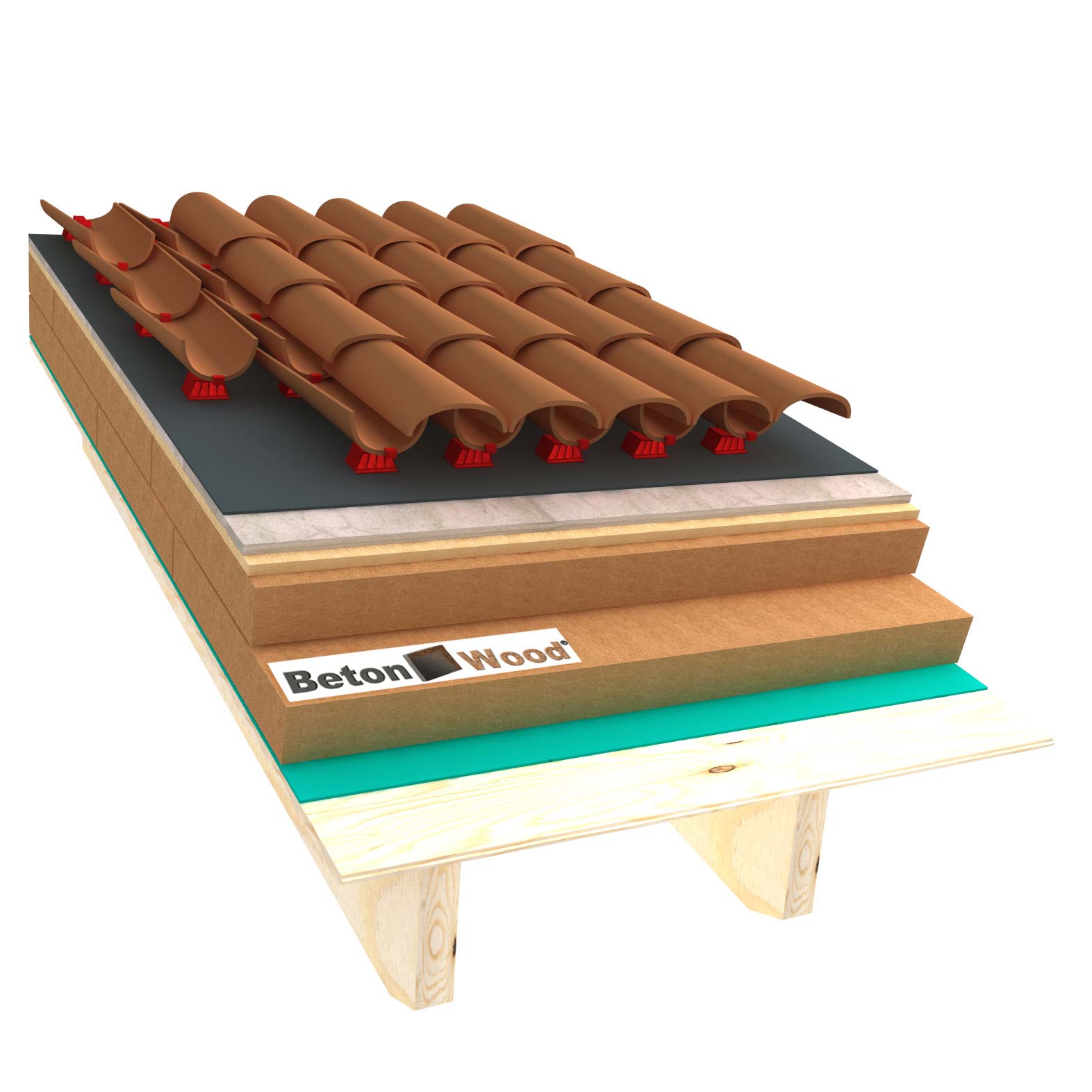

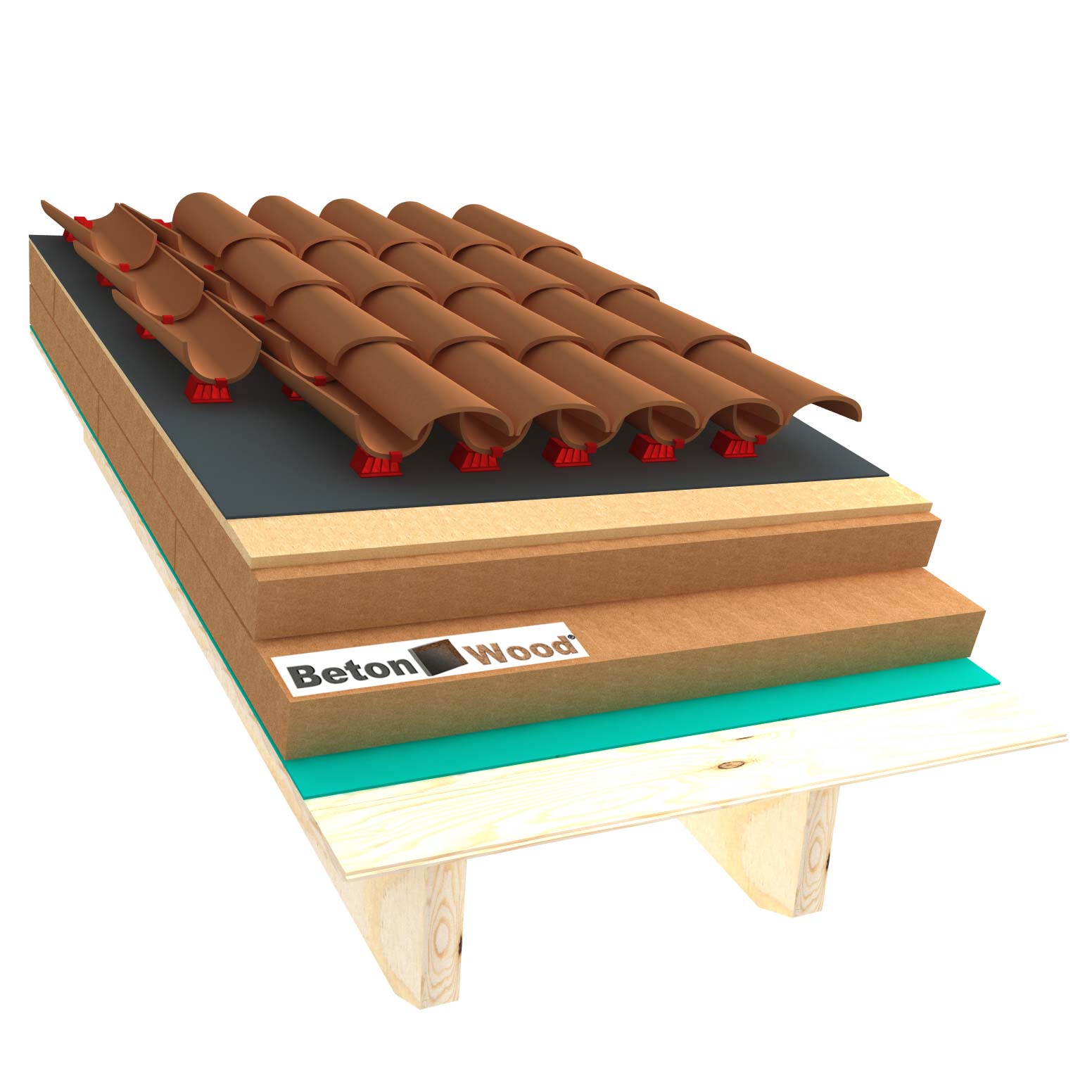

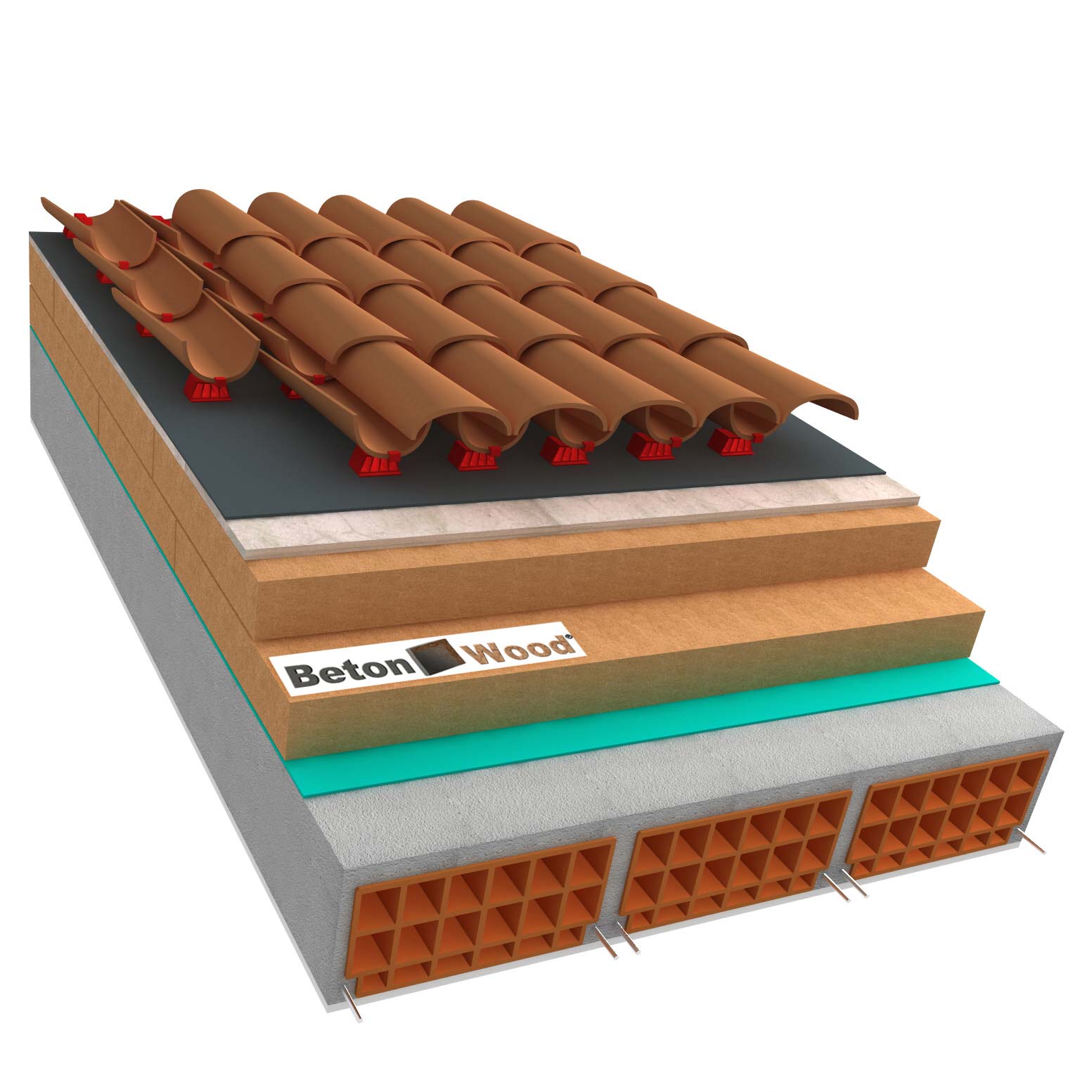

• rigid insulation fiber wood panels for walls and roofs, under coverings;

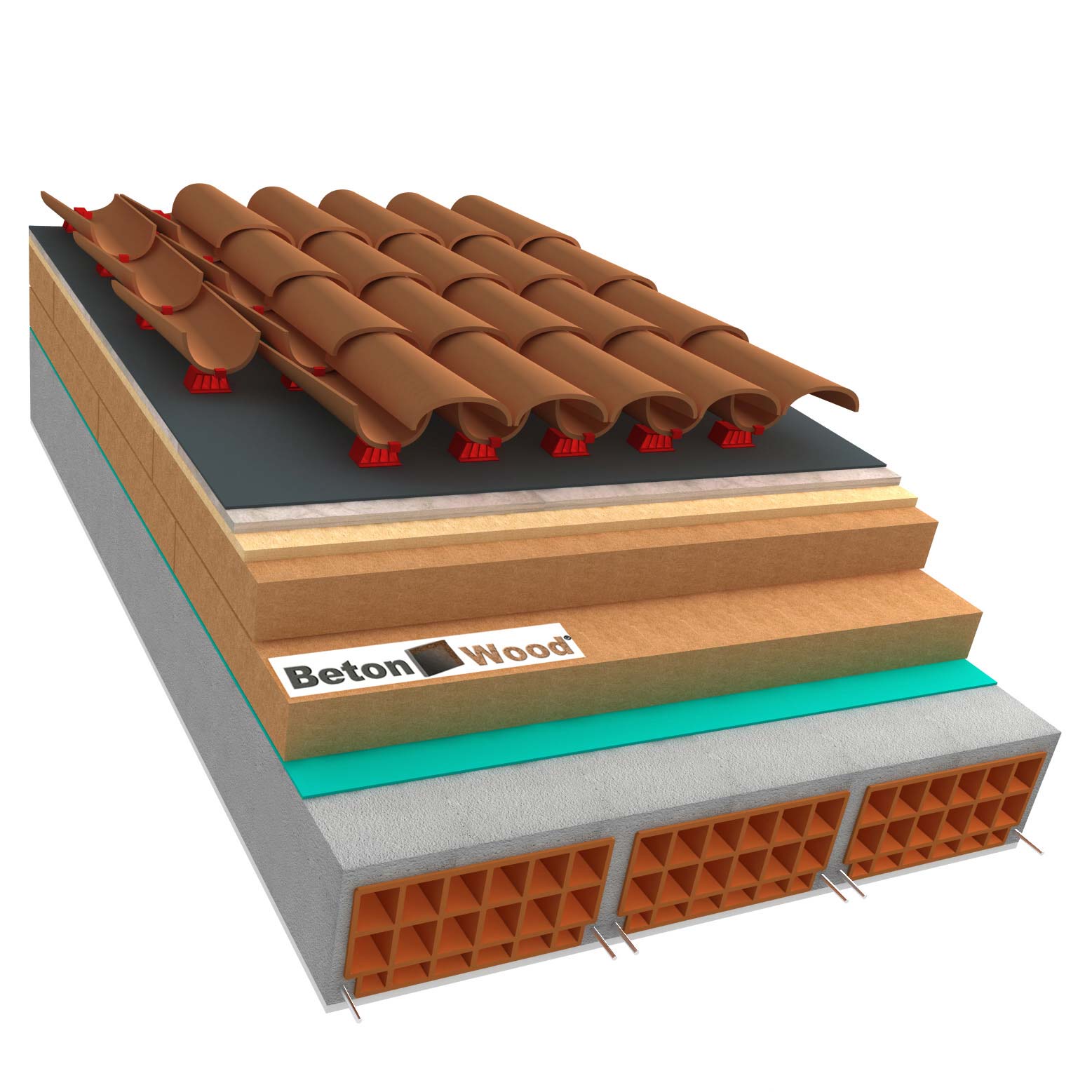

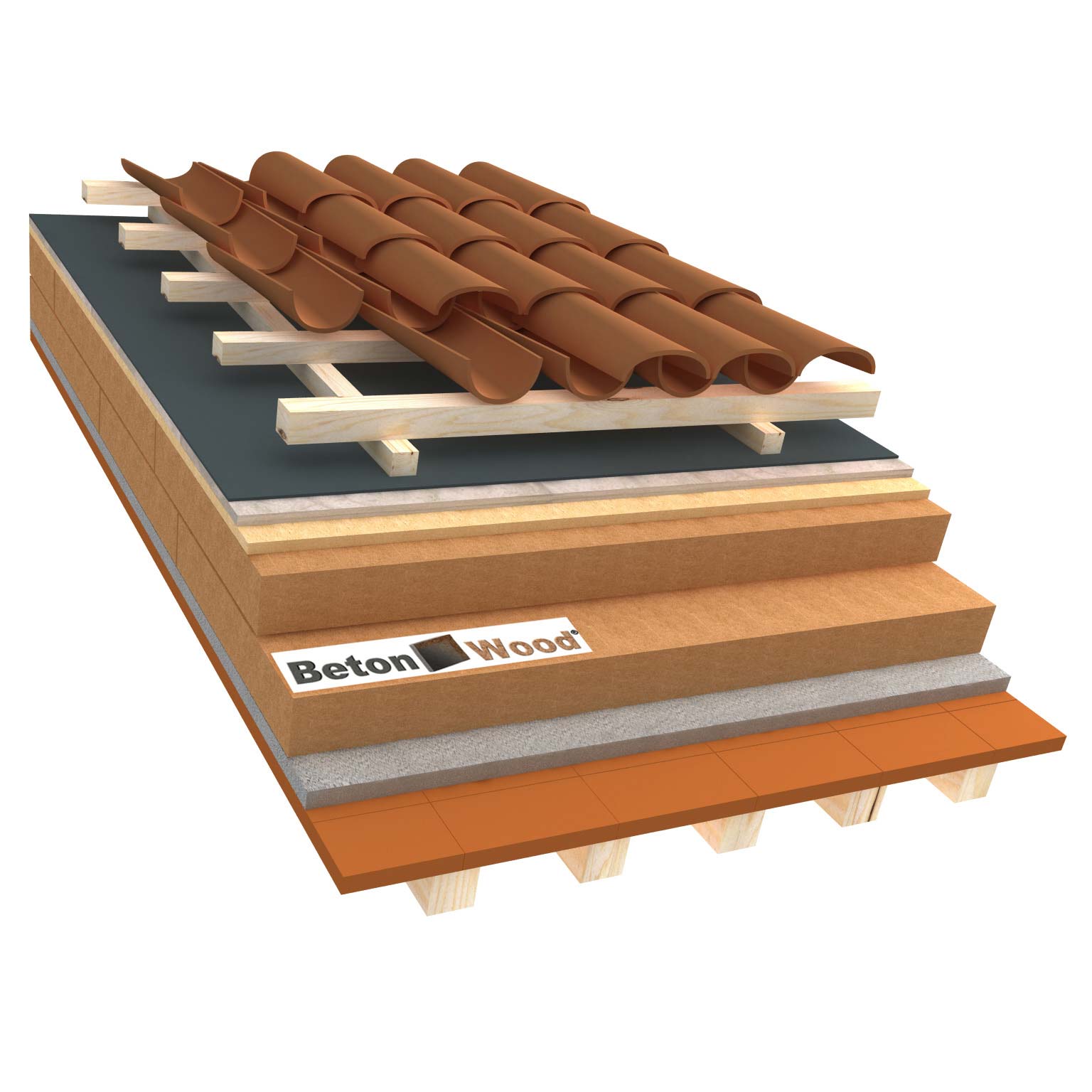

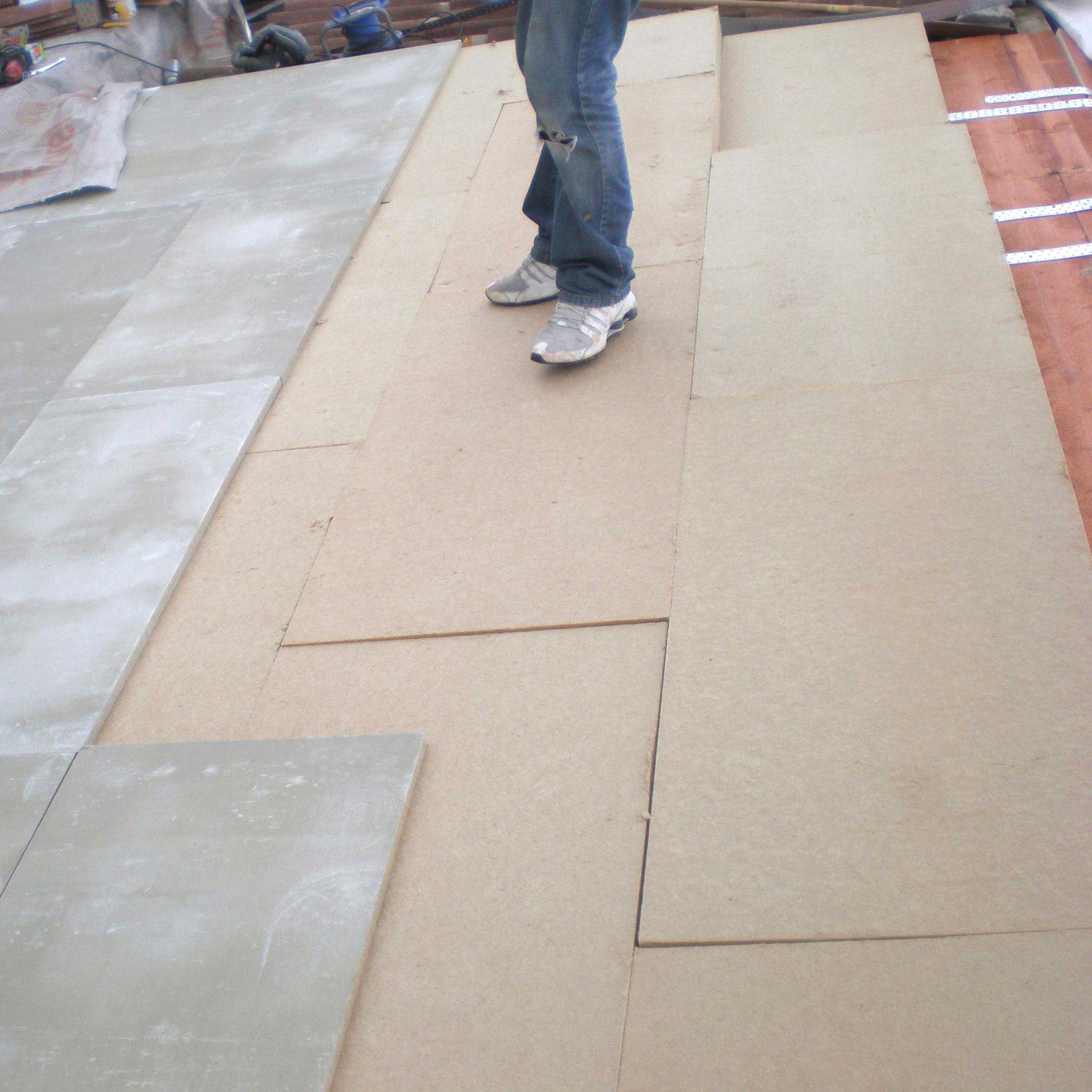

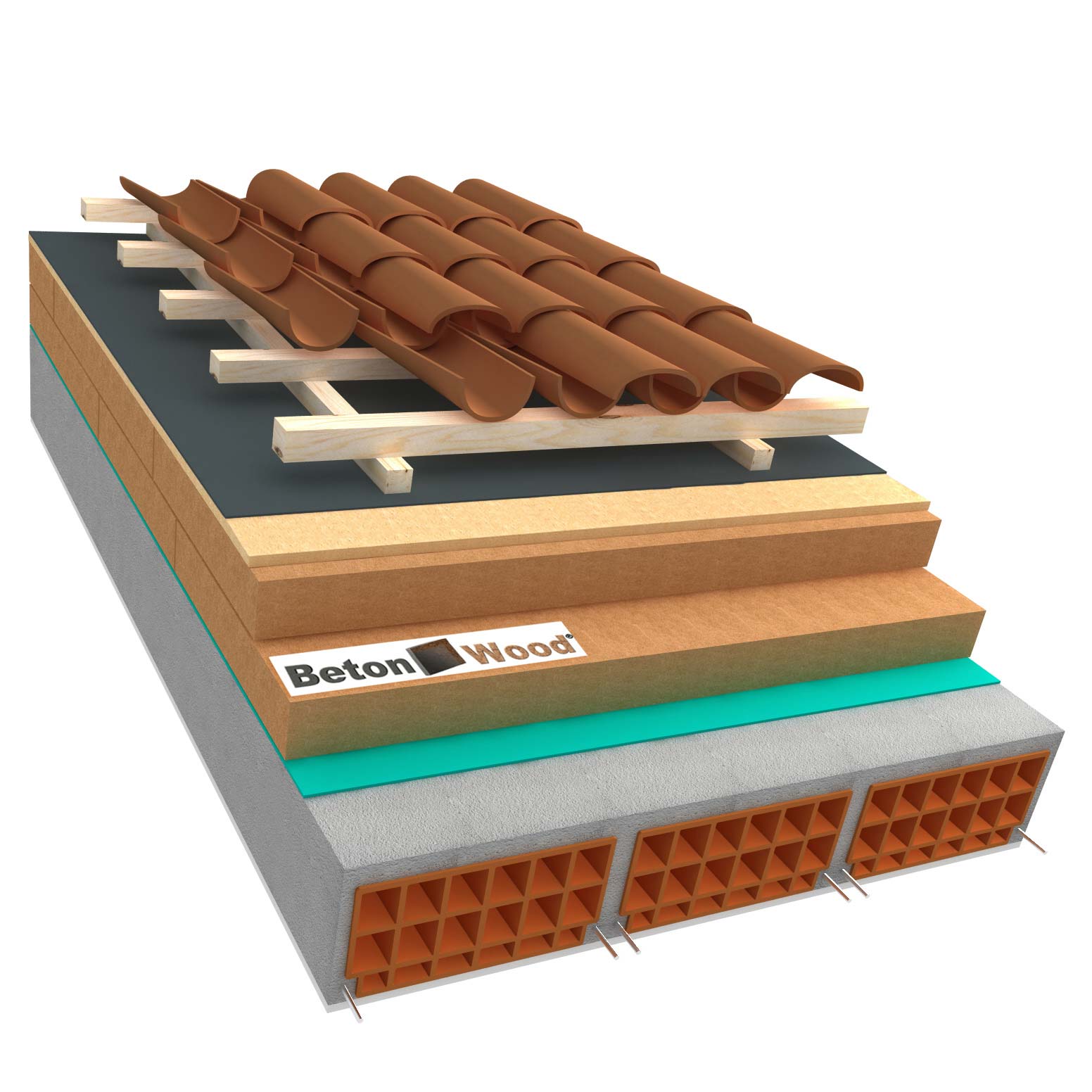

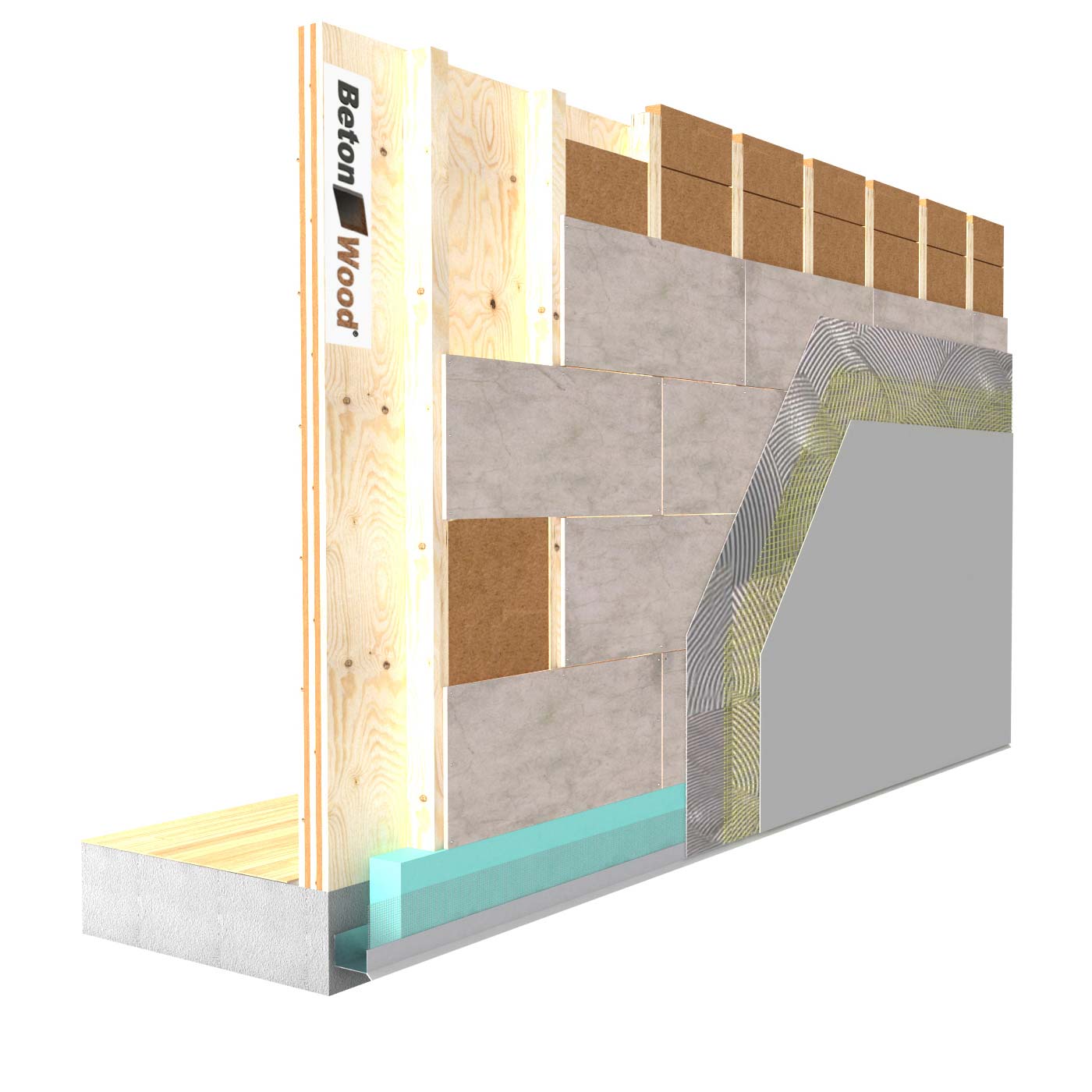

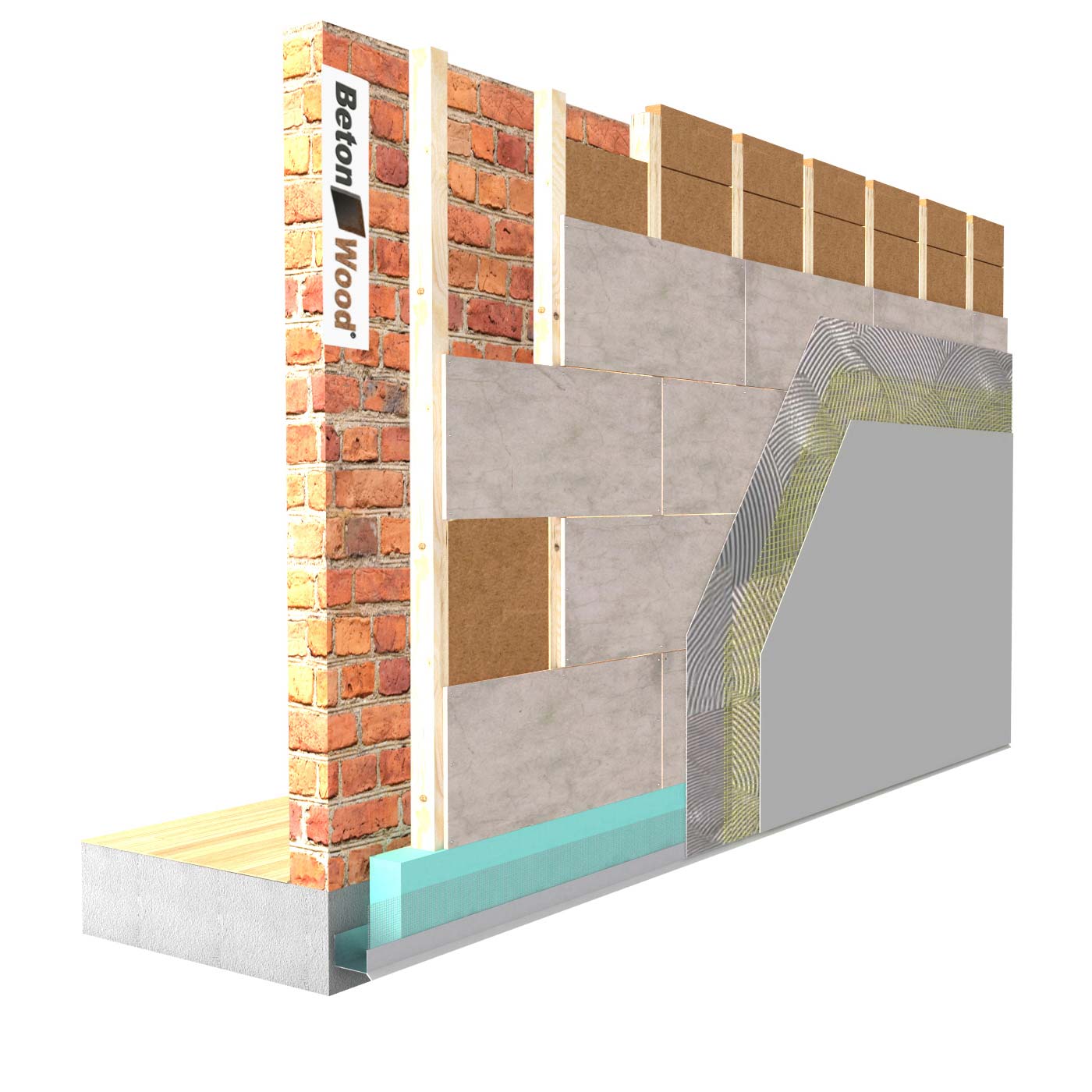

• external insulation of roofs, and walls protected from the weather under the coating;

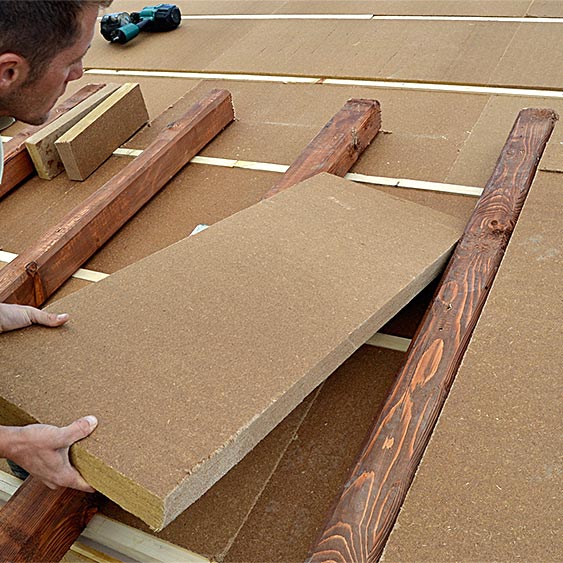

• insulation between trusses, beams and beams, wooden structures and metal frames,

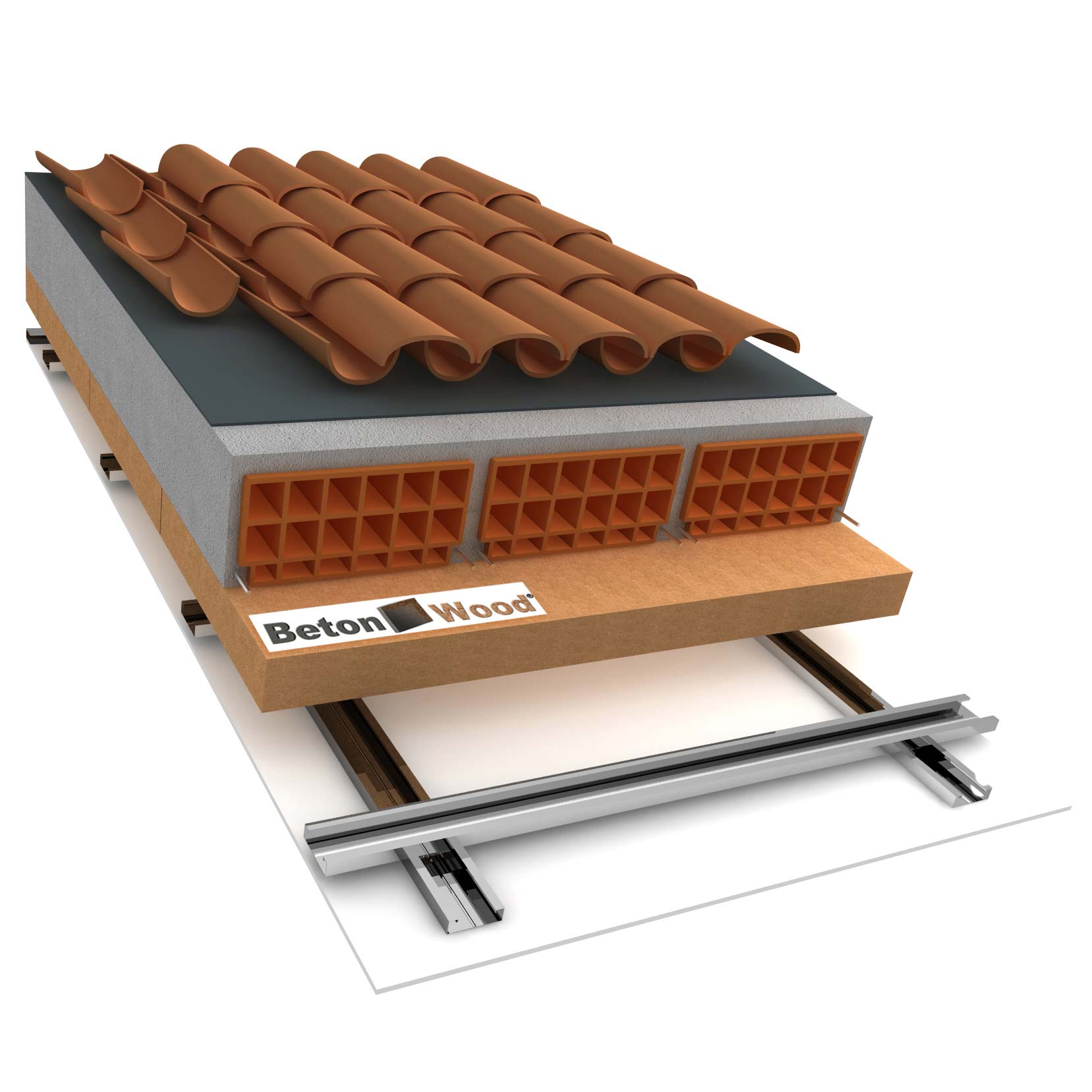

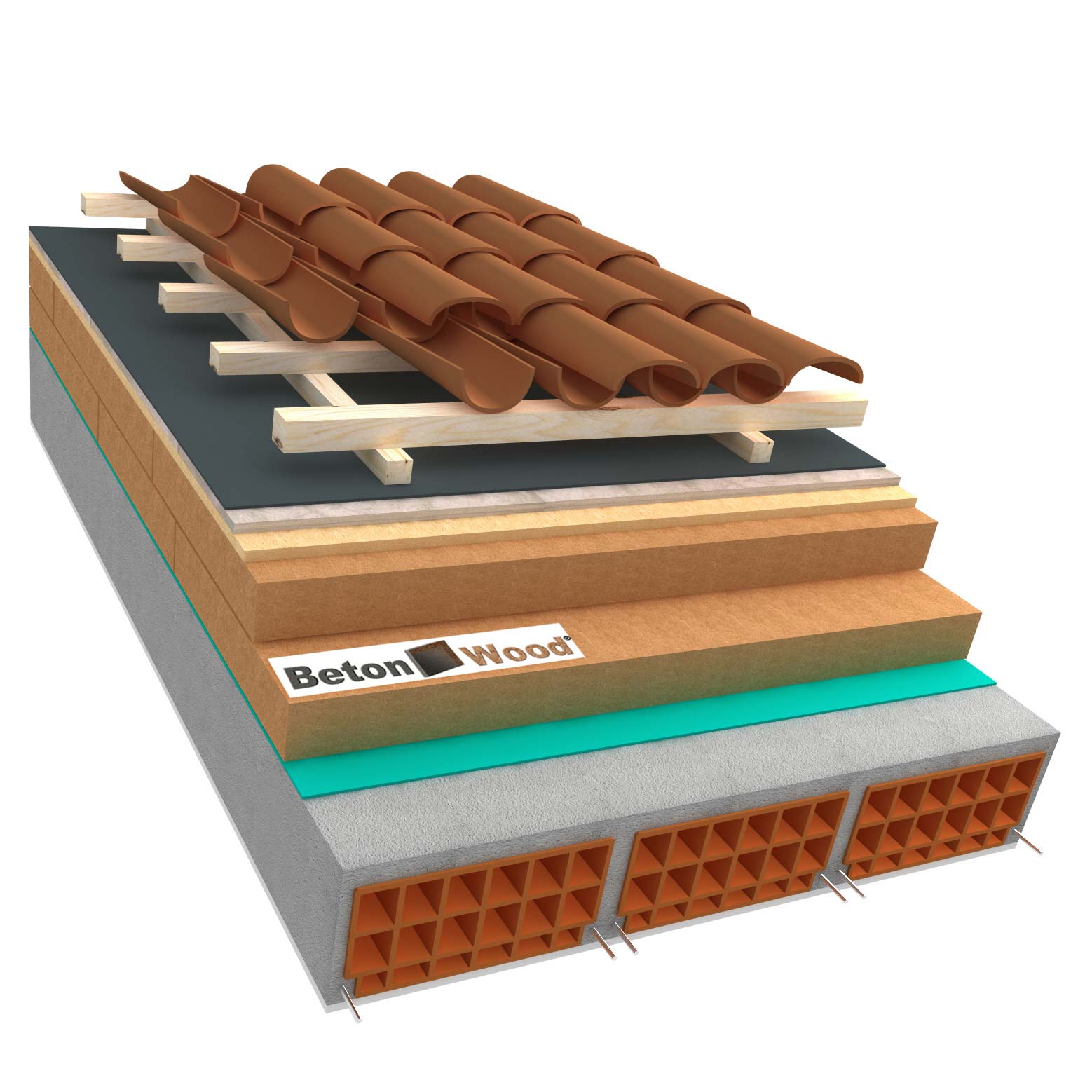

• internal insulation under the roof or under panels or roof tiles;

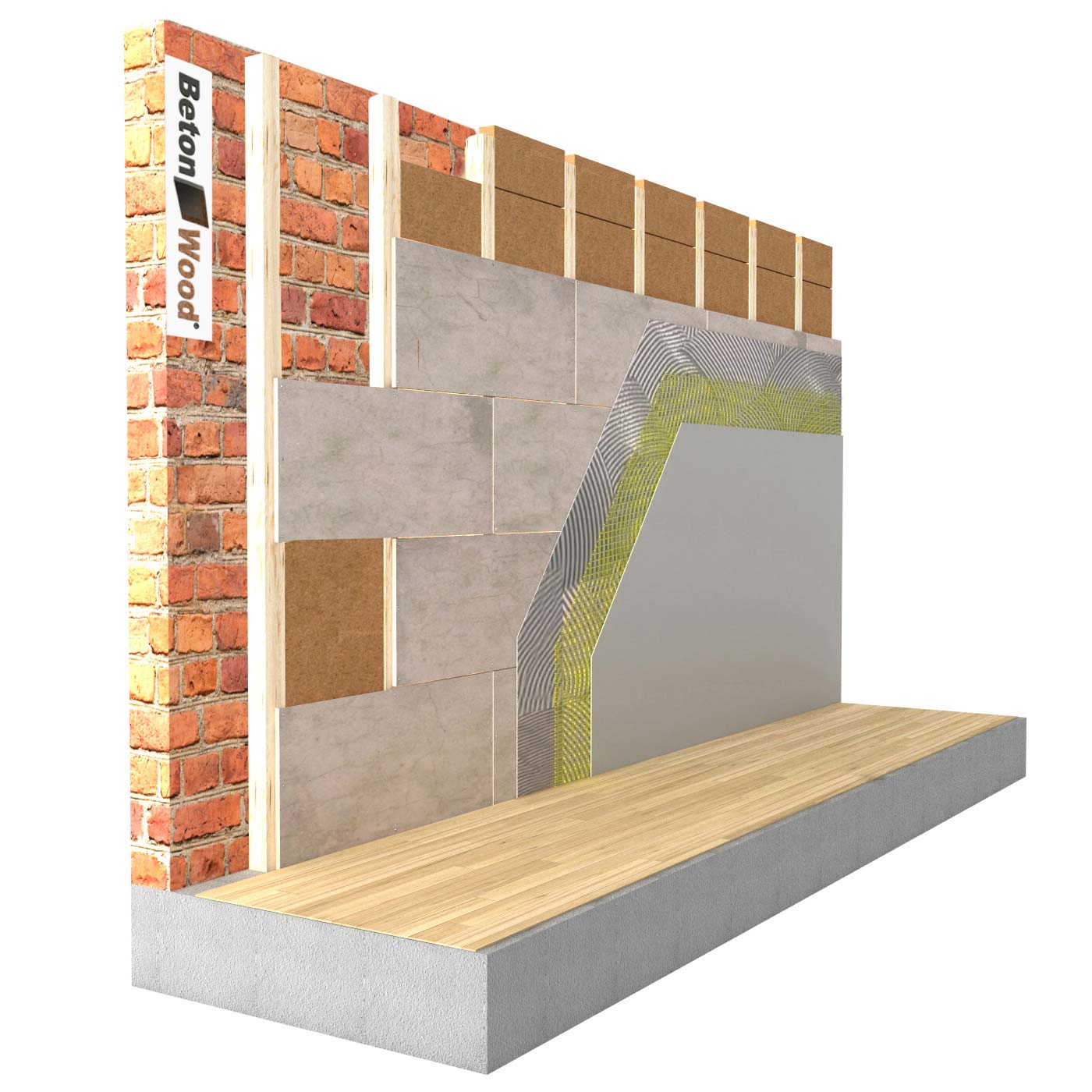

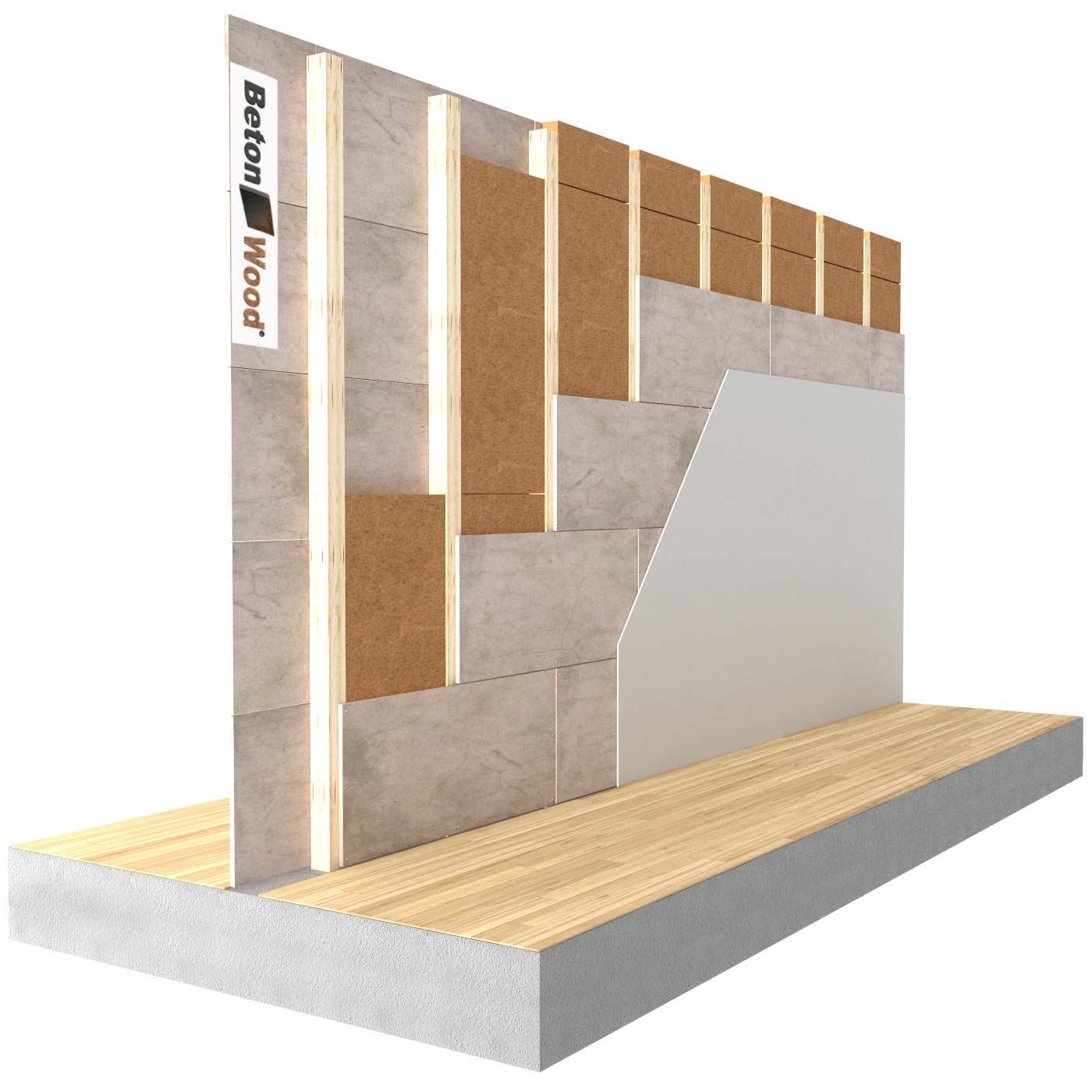

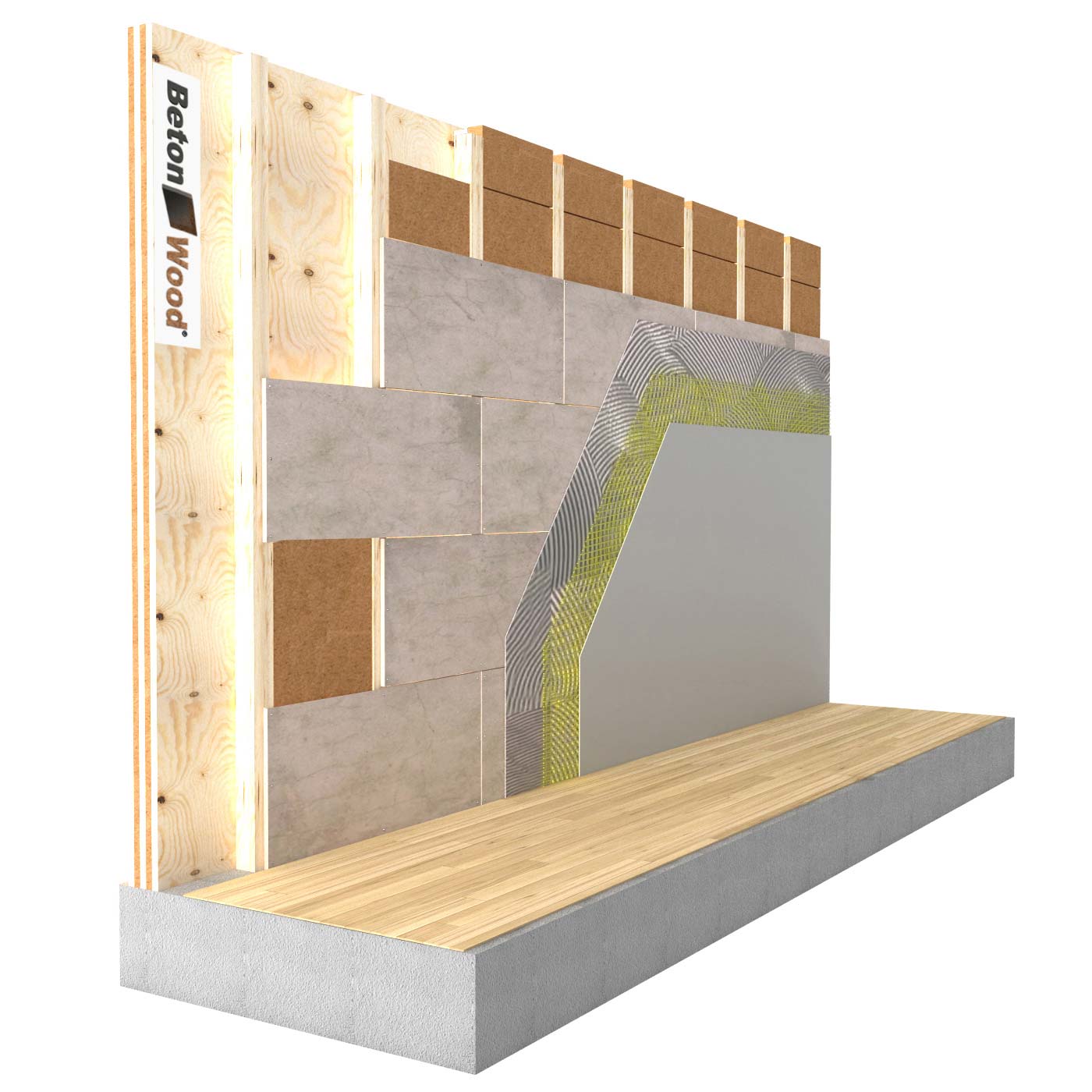

• internal insulation of walls and partitions.

Applications

The installation is strictly linked to the type of use of the panel depending on which it will be appropriate to adopt the most suitable application method.
In general it is always necessary to protect this material from moisture both before laying, during the storage phase on site, and before the realization of the covering.
In case of exposure of the material to the water let the material dry.

Available sizes

fiber wood panel with sharp edges

Thickness	Size mm	kg/m²	Pan./pallet	m²/pallet	kg/pallet
20 mm	1350 x 600	3,20	116	94,0	approx.300
30 mm	1350 x 600	4,80	74	59,9	approx.300
40 mm	1350 x 600	6,40	56	45,4	approx.310
60 mm	1350 x 600	9,60	38	30,8	approx.300
80 mm	1350 x 600	12,80	28	22,7	approx.310
100 mm	1350 x 600	16,00	22	17,8	approx.300
120 mm	1350 x 600	19,20	18	14,6	approx.300
140 mm	1350 x 600	22,40	16	13,0	approx.300
160 mm	1350 x 600	25,60	14	11,3	approx.300
180 mm	1350 x 600	28,80	12	9,7	approx.310
200 mm	1350 x 600	32,00	12	9,7	approx.325

Available sizes

fiber wood panel with tongue&groove profile

Thickness	Size mm	Real surface mm	kg/m²	Pan./pallet	m²/pallet	kg/pallet
100 mm	1880 x 600	1850 x 570	16,00	22	24,8	approx.420
120 mm	1880 x 600	1850 x 570	19,20	18	20,3	approx.420
140 mm	1880 x 600	1850 x 570	22,40	16	18,0	approx.420
160 mm	1880 x 600	1850 x 570	25,60	14	15,8	approx.420

Technical characteristics

Characteristics	Values
Density kg/m³	160
Reaction to fire according to the standard EN 13501-1	E
Coefficient of thermal conductivity λD W/(m·K)	0,038
Specific heat capacity J/(kg·K)	2.100
Resistance to vapor diffusion μ	5
sd value (m)	0,1(20) /0,2(30) /0,2(40)/ 0,3(60) /0,4(80) /0,5(100) / 0,6(120) / 0,7(140) /0,8(160)/ 1,0(200)
Thermal resistance RD (m²·K)/W	0,5(20) /0,5(30) /1,05(40)/ 1,5(60)/2,10(80) /2,6(100) / 3,15(120) /3,65(140) /4,20(160) / 4,70(180)/5,25(200)
Bending resistance at 10% of compression (N/mm²)	0,05
Resistance to compression (kPa)	50
Resistance to tearing (kPa)	≥2,5
Hydraulic resistance relative to the length [(kPa·s)m²]	≥100
Manufacture controlled according to the standard	EN 13171
Panels identification	WF - EN 13171 - T4 - CS(10\Y)50 - TR2,5 - WS2,0 - AF100
Waste code (EAK)	030105/170201
