Fiber Wood Insulation FiberTherm therm dry 110kg/m³
Fiber Wood Insulation with density 110 Kg/m³.
FiberTherm Therm dry 110 in fiber wood are rigid panels produced with dry system for the thermal and acoustic insulation of roofs, attics and walls. They are completely natural and highly breathable panels.
The fiber wood panel FiberTherm therm dry 110 is a thermo-acoustic insulation under roof and wall covering. It possesses the ability to expand the insulation of wooden construction elements.
The fiber wood panels FiberTherm therm dry 110 they are particularly stable and light, they are produced with a dry process that does not require the use of adhesives of any kind.
These all-natural panels are available with a tongue-and-groove profile, stepped or sharp. These panels have a density equal to 110 kg/m³.
The material is also recyclable, it is certified and made exclusively with wood from controlled forests in compliance with the FSC guidelines (Forest Stewardship Declaration).
With FiberTherm therm dry is possible to obtain a thermo-acoustic insulation of the roof and walls to contribute considerably to the improvement of the quality of life within their own walls of the house. Excellent thermal insulation of the wooden structural elements is obtained. Thanks to the low thermal conductivity [0,037 W/(m∗K)] and to the high thermal resistance (see table), FiberTherm therm dry 110 protects your environment also from summer heat and winter frost. The density, about 110 kg/m³ and the high specific heat capacity, 2100 J/kgK (more than double the mineral wool), prevent heat from entering even during the hottest days. In this way you can enjoy a pleasant sleep, even under the roof.

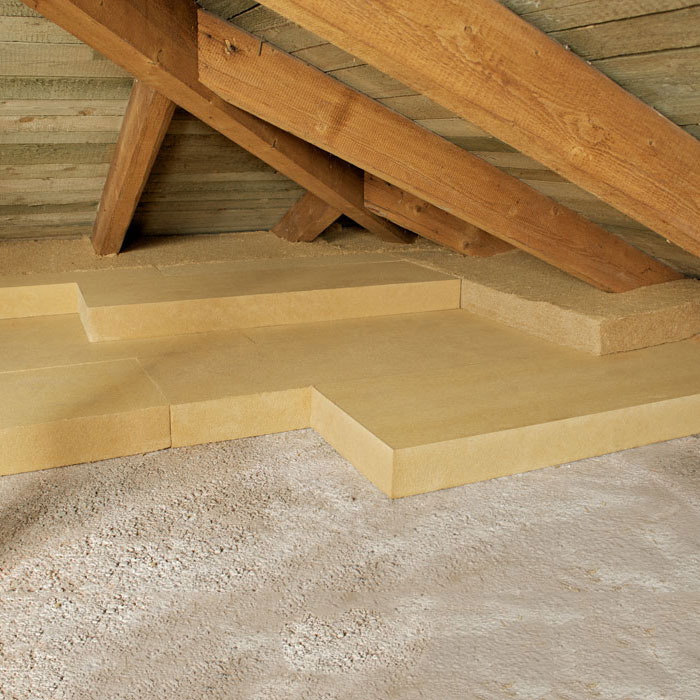

The fiber wood panel FiberTherm therm dry 110 is an excellent thermo-acoustic insulation for attics and internal walls.
• versatile insulation panel for different applications;
• tested dermatologically, without any negative effect on the skin;
• profile available with sharp edge, stepped and tongue&groove;
• made by dry method;
• rigid but light insulating panel;
• excellent insulating properties, in summer as in winter;
• breathable, promotes a comfortable and healthy environment;
• recyclable, ecological, environment-friendly;
• building material tested and authorized according to current European standards.
The fiber wood panels FiberTherm therm dry 110 has the following characteristics:
• effective protection against the summer heat thanks to the remarkable intrinsic insulating properties;
• opening to the diffusion of water vapor that contributes to the realization of transpiring buildings;
• high capacity for absorbing ambient humidity, a natural hygrometric regulator system;
• quality assurance, thanks to continuous checks and tests carried out according to current European standards.
Available sizes
fiber wood panels with sharp edges
| Thickness | Size mm | kg/m² | Pan./pallet | m²/pallet | kg/pallet |
|---|---|---|---|---|---|
| 40 mm | 1350 x 600 | 4,40 | 56 | 45,5 | approx.215 |
| 60 mm | 1350 x 600 | 6,60 | 38 | 30,8 | approx.218 |
| 80 mm | 1350 x 600 | 8,80 | 28 | 22,7 | approx.215 |
| 100 mm | 1350 x 600 | 11,00 | 22 | 17,8 | approx.211 |
| 120 mm | 1350 x 600 | 13,20 | 18 | 14,6 | approx.207 |
| 140 mm | 1350 x 600 | 15,40 | 16 | 13,0 | approx.215 |
| 160 mm | 1350 x 600 | 17,60 | 14 | 11,3 | approx.218 |
| 180 mm | 1350 x 600 | 19,80 | 12 | 9,7 | approx.215 |
| 200 mm | 1350 x 600 | 22,00 | 12 | 9,7 | approx.215 |
| 220 mm | 1350 x 600 | 24,20 | 10 | 8,1 | approx.215 |
| 240 mm | 1350 x 600 | 26,40 | 10 | 8,1 | approx.215 |
| 260 mm | 1350 x 600 | 28,60 | 8 | 6,4 | approx.215 |
| 280 mm | 1350 x 600 | 30,80 | 8 | 6,4 | approx.215 |
| 300 mm | 1350 x 600 | 33,00 | 8 | 6,4 | approx.215 |
Available sizes
fiber wood panels with stepped profile
| Thickness | Size mm | Real surface mm | kg/m² | Pan./pallet | m²/pallet | kg/pallet |
|---|---|---|---|---|---|---|
| 140 mm | 1350 x 600 | 1335 x 585 | 13,20 | 16 | 12,7 | approx.215 |
| 160 mm | 1350 x 600 | 1335 x 585 | 17,60 | 14 | 10,9 | approx.215 |
| 180 mm | 1350 x 600 | 1335 x 585 | 19,80 | 12 | 9,4 | approx.207 |
| 200 mm | 1350 x 600 | 1335 x 585 | 22,00 | 12 | 9,4 | approx.229 |
| 220 mm | 1350 x 600 | 1335 x 585 | 24,20 | 10 | 7,8 | approx.211 |
| 240 mm | 1350 x 600 | 1335 x 585 | 26,40 | 10 | 7,8 | approx.229 |
Available sizes
fiber wood panels with tongue&groove profile
| Thickness | Size mm | Real surface mm | kg/m² | Pan./pallet | m²/pallet | kg/pallet |
|---|---|---|---|---|---|---|
| 60 mm | 1880 x 600 | 1850 x 570 | 6,60 | 38 | 38,4 | approx.283 |
| 80 mm | 1880 x 600 | 1850 x 570 | 8,80 | 28 | 31,6 | approx.293 |
| 100 mm | 1880 x 600 | 1850 x 570 | 11,00 | 22 | 23,5 | approx.288 |
| 120 mm | 1880 x 600 | 1850 x 570 | 13,20 | 18 | 19,2 | approx.283 |
| 140 mm | 1880 x 600 | 1850 x 570 | 15,40 | 16 | 17,1 | approx.293 |
| 160 mm | 1880 x 600 | 1850 x 570 | 17,60 | 14 | 15,0 | approx.293 |
Technical characteristics
| Characteristics | Values |
|---|---|
| Density kg/m³ | 110 |
| Reaction to fire according to the standard EN 13501-1 | E |
| Coefficient of thermal conductivity λD W/(m·K) | 0,037 |
| Specific heat capacity J/(kg·K) | 2.100 |
| Resistance to vapor diffusion μ | 3 |
| Bending resistance at 10% of compression (N/mm²) |
0,05 |
| sd value (m) | 0,12(40) /0,18(60) /0,24(80) / 0,3(100) /0,36(120) / 0,42(140) / 0,48(160) / 0,54(180) /0,6(200) / 0,66(220) /0,72(240)/0,78(260)/ 0,84(280)/ 0,9(300) |
| Thermal resistance RD (m²·K)/W | 1,5(40) /1,6(60) /2,1(80) / 2,7(100) /3,2(120) / 3,7(140) / 4,3(160) /4,8(180) /5,4(200) / 5,9(220) / 6,4(240)/7,0(260)/ 7,55(280)/ 8,1(300) |
| Resistance to compression (kPa) | 50 |
| Resistance to tearing (kPa) | 5 |
| Water absorbing (kg/m²) | ≥1,0 |
| Manufacture controlled according to the standard | EN 13171 |
| Panels identification | WF - EN 13171 - T5 - CS(10\Y)50 - TR10 - WS1,0 - MU3 |
| Waste code (EAK) | 030105/170201 |
Solutions with fiber wood FiberTherm dry

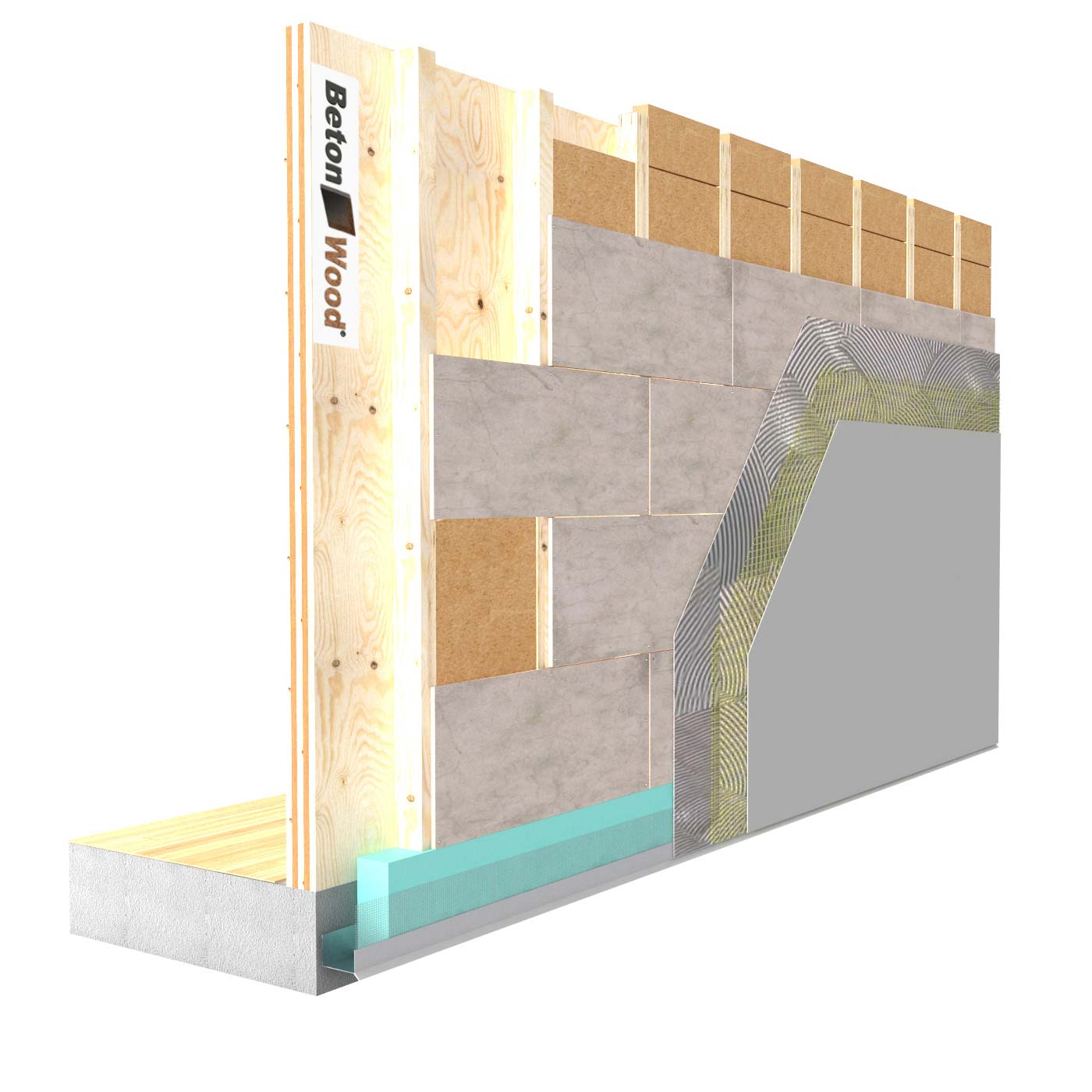

External insulation system with Therm dry fiber wood on wooden walls
External thermal insulation system with FiberTherm Therm dry fiber wood and BetonWood cement bonded particle boards on wooden walls.
External insulation system with Therm dry fiber wood on masonry
External thermal insulation system with FiberTherm Therm dry fiber wood and BetonWood cement bonded particle boards on masonry.
Internal insulation system with Therm dry fiber wood on wooden walls
Internal thermal insulation system with FiberTherm Therm dry fiber wood and BetonWood cement bonded particle boards on wooden walls.
Partition walls with Therm dry fiber wood on wooden structure
Internal thermal insulation system of partition walls with FiberTherm Therm dry fiber wood and BetonWood cement bonded particle boards on wooden walls.
Dry screed in fiber wood Therm dry on concrete
Dry system for thermal insulation of floors and attics with double layer of fiber wood FiberTherm dry on concrete support.
Dry screed in fiber wood Therm dry on terracotta tiles
Dry system for thermal insulation of floors and attics with double layer of fiber wood FiberTherm dry on terracotta tiles.
Dry screed in fiber wood Therm dry in wood
Dry system for thermal insulation of floors and attics with double layer of fiber wood FiberTherm dry on wood.
Ventilated roof with fiber wood Therm and BetonWood on matchboarding
Ventilated roof system with Aercoppi and high density fiber wood FiberTherm and cement bonded particle boards with excellent thermal insulation power on matchboarding.
Ventilated roof with fiber wood Therm and BetonWood on matchboarding
Ventilated roof system with high density and excellent thermal insulating fiber wood FiberTherm and cement bonded particle boards on matchboarding.
Ventilated roof with fiber wood Therm and BetonWood on concrete
Ventilated roof system with Aercoppi and high density fiber wood FiberTherm and cement bonded particle boards with excellent thermal insulation power on concrete support.
Ventilated roof with fiber wood Therm and BetonWood on concrete
Ventilated roof system with high density and excellent thermal insulating fiber wood FiberTherm and cement bonded particle boards on concrete support.
Ventilated roof with fiber wood Therm and BetonWood on terracotta tiles
Ventilated roof system with Aercoppi and high density fiber wood FiberTherm and cement bonded particle boards with excellent thermal insulation power on terracotta tiles.
Insulating ceiling in fiber wood Therm
High insulating ceiling in fiber wood panels FiberTherm posato fixed in metal or wooden frame and covered with plasterboards.
