Loose Fiber Wood Insulation Zell

Loose fiber wood FiberTherm Zell

Loose fiber wood for thermal and acoustic insulation.
Loose fiber wood Fibertherm Zell is composed of pure loose fiber woods that fill all the cavities and can be used for the insulation of roofs, walls and dry floors. The fibers are insufflate at high pressure in the hollow spaces and go to occupy all the available volume taking the shape of the surrounding elements.

FiberTherm zell contains pure fiber woods that fill the cavities and ensure thermal and acoustic insulation in all parts of the building: walls, roofs, floors and floors. Each of these fibers contains in itself the advantages of natural wood: durability, stability and excellent thermal insulation properties.

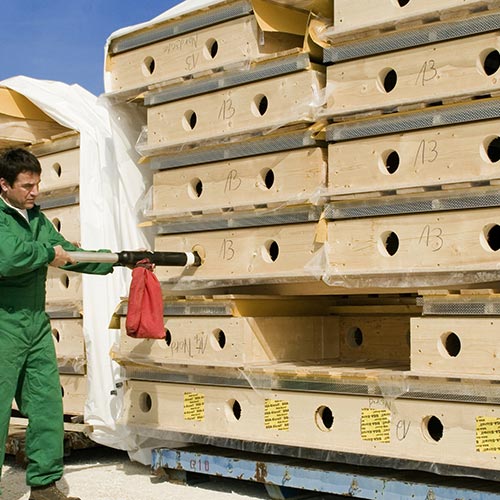

To produce the insulating layer, the fibrous material is injected at high pressure into the closed compartments and adapts exactly to the limiting elements. Therefore FiberTherm zell is suitable both as an insulating material for prefabricated elements (for example complete walls) as well as for renovations.

With fiber wood FiberTherm zell is not necessary that the rooms to be insulated have the standard dimensions of the insulating materials of our competitors. Also the technical systems present in the interspaces are completely wrapped by the insulating material without manual interventions. With the loose fiber woods for blowing, homogeneous filling is achieved even in the most complex constructions.

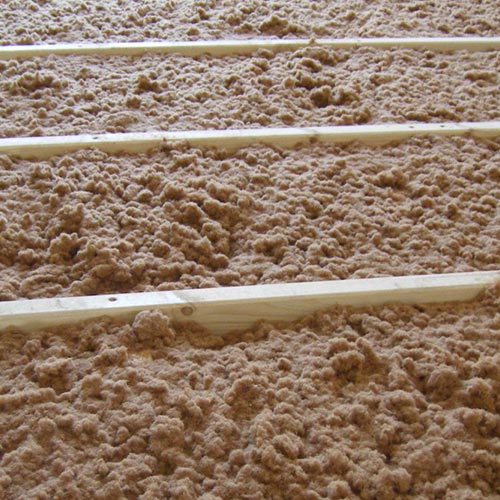

FiberTherm zell can also be used for open insufflation in free installation. The open blowing procedure is used to install FiberTherm zell as insulating material on horizontal surfaces, vaulted or slightly inclined between the beams of the trusses. For renovations or new buildings, wooden buildings or wooden load-bearing structures or other types of light construction - with FiberTherm zell the insulation become particularly convenient and environmentally friendly.

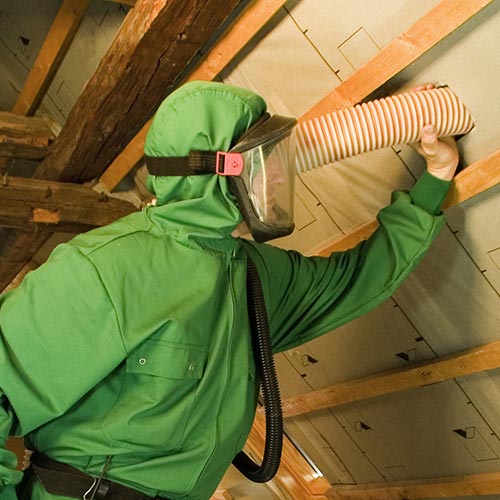

The installation of FiberTherm zell must be performed only by personnel with adequate training and authorized companies (according to general approval of the building inspectorate). FiberTherm zell is compressed, packaged in bags and delivered. The compacted fibers must be prepared in special blowing machines and by means of flexible pipes conveyed to the laying point. The advantage: the machine and the insulating material can remain outside the building, allowing it to work quickly even in tight spaces.
With FiberTherm zell no waste is generated. The dust or dirt generated is compostable. If laid correctly it is reusable even after many years.

The material is also recyclable, it is certified and made exclusively with wood from controlled forests in compliance with the FSC guidelines (Forest Stewardship Declaration).


The loose fiber woods FiberTherm zell has the following characteristics:

• insulation layer without break in continuity;
• excellent thermal insulation and thermal capacity;
• secure thanks to many years of experience with the product;
• anti-settling safety thanks to the fiber woods that fit together;
• high quality thanks to the installation performed by qualified companies;
• processing without waste;
• fiber woods recyclable from pine wood only;
• excellent sound insulation;
• excellent insulating properties, in summer as in winter;
• breathable, favors a comfortable and healthy environment;
• recyclable, ecological, environment-friendly;
• building material tested and authorized according to current European standards.

The loose fiber woods FiberTherm zell is suitable for any type of thermal and acoustic insulation that requires the filling of cavities between structural elements, such as:

• cavities;

• prefabricated elements for walls and floors to be filled with insulating material;

• floors as part of building renovation projects.

Sizes and characteristics

Products delivery Packages/pallet kg/pallet Pallet size
PE bags 15 kg 21 315 approx.0,80x1,20x2,60m
(Lenght x Width x Height)
PE bags 20 kg 18 360 approx.0,80x1,20x2,30m
(Lenght x Width x Height)


Characteristics Values
European technical approval (ETA) 12/0011
Recommended density kg/m³
• open insufflation(roofs)
• internal insufflation (walls, floors)

approx. 32 - 38
approx. 35 - 45
Coefficient of thermal conductivity λD W/(m·K) 0,038
Specific heat capacity J/(kg·K) 2.100
Resistance to vapor diffusion μ 1÷2
Waste code (EAK) 030105/170201
